Model

Product Description/Features

E5120

E5120F

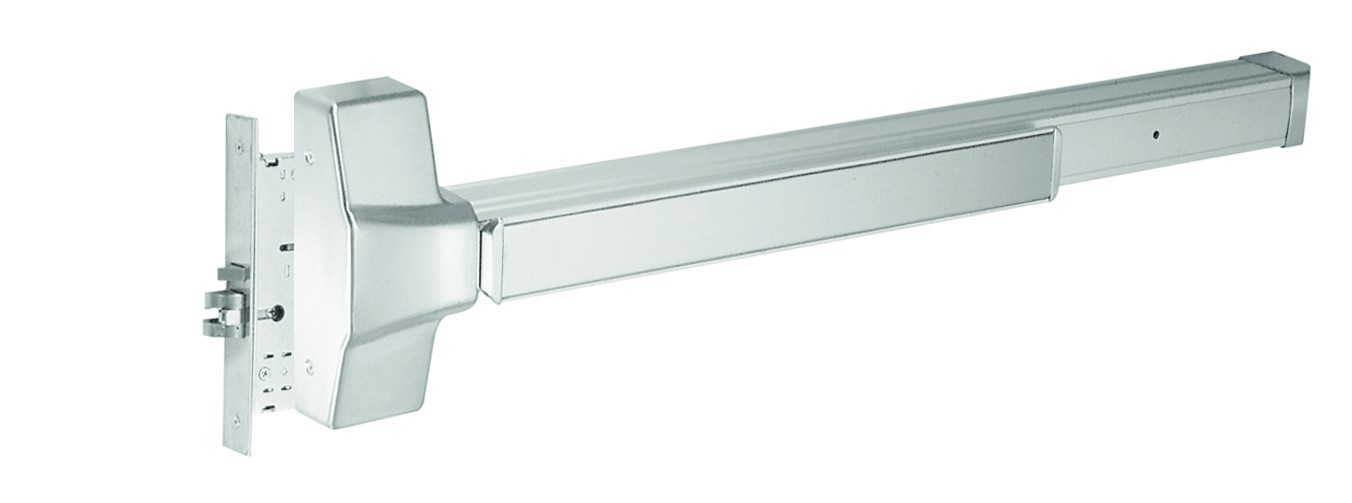

Mortise Exit Device
Wide Style


Certifications and Listings

UL/cUL Listed: UL Listed as Panic Exit Hardware or 3-Hour Fire Exit Hardware
ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1

e5110
e812

E-818

e822

E-828

Specifications

Device Lengths available for (36)" 33" (838mm) or (48"), 45" (1137mm)
Door Widths 36" For 29" to 36" (736mm to 914mm) doors
48" For 33" to 48" (838mm to 1219mm) doors
Minimum Stile Width 4-1/4" (107mm)
Latch Bolt 3/4" (19mm) Throw, Two-Piece Latchbolt (304 Stainless Steel) with Anti Friction Insert and Auxillary Deadlocking Latch

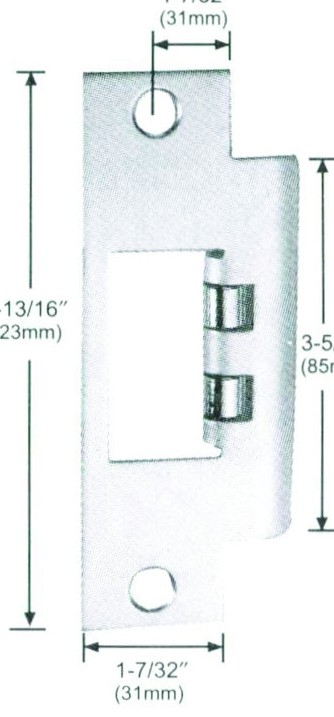

Strikes Universal curved lip, non-handed, E818 For 5120, 828 For 5120F.
Optional E831 For Panic or E832 For Fire flat ANSI Strike for door pairs With overlapping astragal
Dogging Kit Hex key dogging (5120 Device Only)
Fire Device No Mechanical Dogging
Dogging Options Cylinder Dogging (CD).
Mounting Fasteners Non Fire Device - 1/4-20 Machine Screws Standard
Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB) supplied standard
Wood Doors For wood doors, order SNB separately
Mounting Height Device centerline from finished floor is 40” (1016mm) standard
Projection Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm)
Finishes 630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order
