Model

Product Description/Features

E5150

E5150F

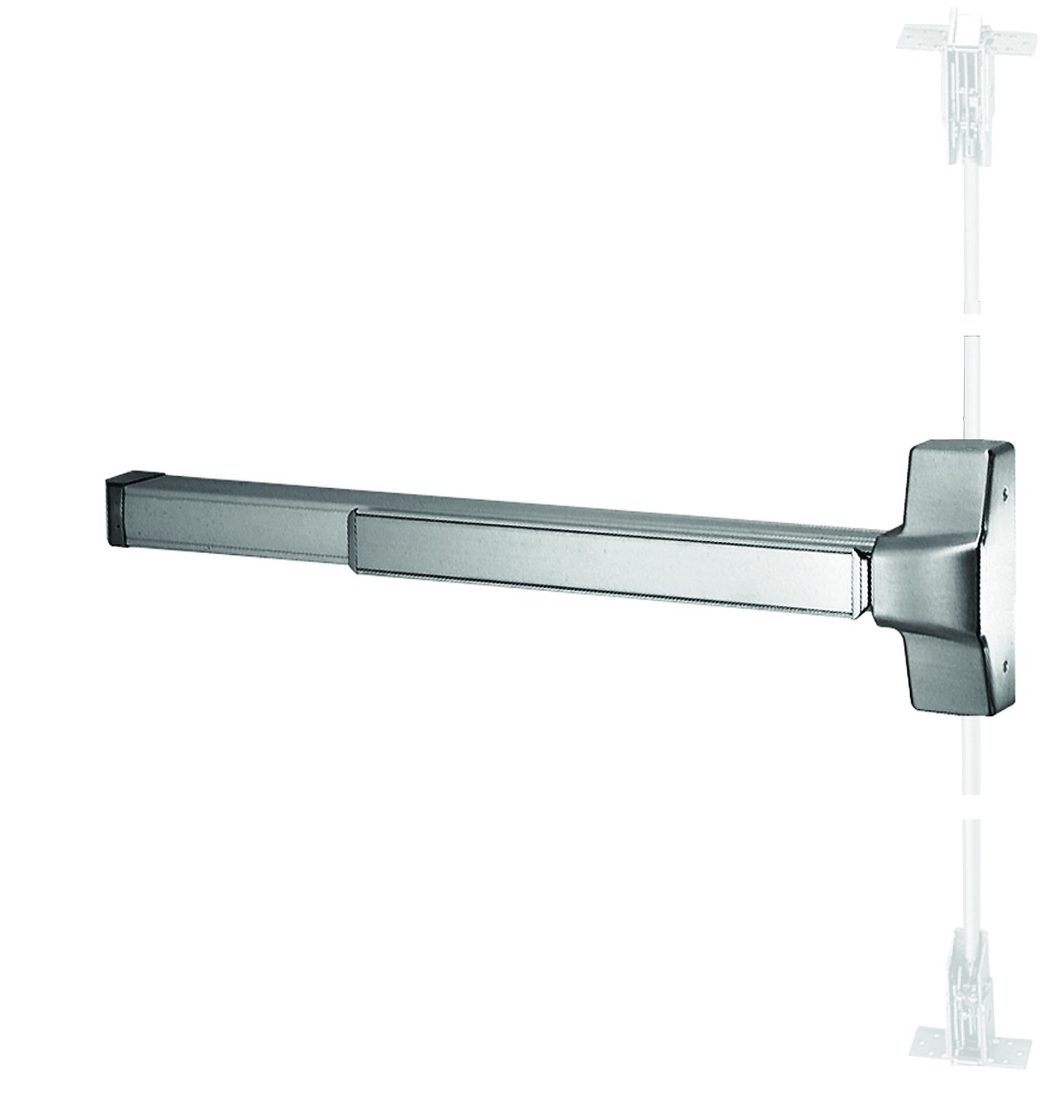

Concealed Vertical Rod Exit Device
Wide Style

Certifications and Listings

ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1

Specifications

Device Lengths	available for (36)" 33" (838mm) or (48"), 45" (1137mm)
Door Widths	36" For 29" to 36" (736mm to 914mm) doors 48" For 33" to 48" (838mm to 1219mm) doors
Minimum Stile Width	4-1/4" (107mm)
Latch Bolt	Top latch - 5/8" (16mm) throw, can be deadlocked automatically Bottom latch - 5/8" (16mm) throw, held retracted during door swing
Strikes	Top - E813 For 5150, E822 For 5100F. Btm.815 For 5150, 825 For 5150F
Dogging Kit	Hex key dogging (5150 Device Only)
Fire Device	No Mechanical Dogging
Dogging Options	Cylinder Dogging (CD).
Mounting Fasteners	Non Fire Device - 1/4-20 Machine Screws Standard Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB)
Mounting Height	Device centerline from finished floor is 40” (1016mm) standard
Projection	Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm)
Door Opening Height	Standard door height is 7', 8' is available
Vertical Rods	1/2” (13mm) diameter tube with rod guides Top rod has two pieces to connect for accommodating 7' or 8' door Bottom rod is one piece, its length is 31-1/4” (794mm)
Finishes	630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order
