Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616

Model

Product Description/Features

E5210

E5210F

Rim Exit Device
Narrow Style


Certifications and Listings

UL/cUL Listed: UL Listed as Panic Exit Hardware or 3-Hour Fire Exit Hardware
ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1

e5210
e812

E-801

e822

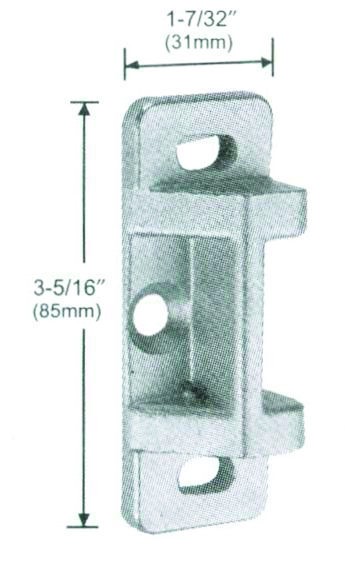

E-802

Specifications

Device Lengths available for (36)" 33" (838mm) or (48"), 45" (1137mm)
Door Widths 36" For 29" to 36" (736mm to 914mm) doors
48" For 33" to 48" (838mm to 1219mm) doors
Minimum Stile Width 2-19/32" (66mm)
Latch Bolt 3/4" (19mm) Throw, Deadlocking Latch (304 Stainless Steel)
Strikes 801 Strike For Panic. 802 Strike For Fire
Dogging Kit Hex key dogging (5210 Device Only)
Fire Device No Mechanical Dogging
Dogging Options Cylinder Dogging (CD).
Mounting Fasteners Non Fire Device - 1/4-20 Machine Screws Standard
Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB) supplied standard
Wood Doors For wood doors, order SNB separately
Mounting Height Device centerline from finished floor is 40” (1016mm) standard
Projection Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm)
Finishes 630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order
