Model

Product Description/Features

E5230

E5230F

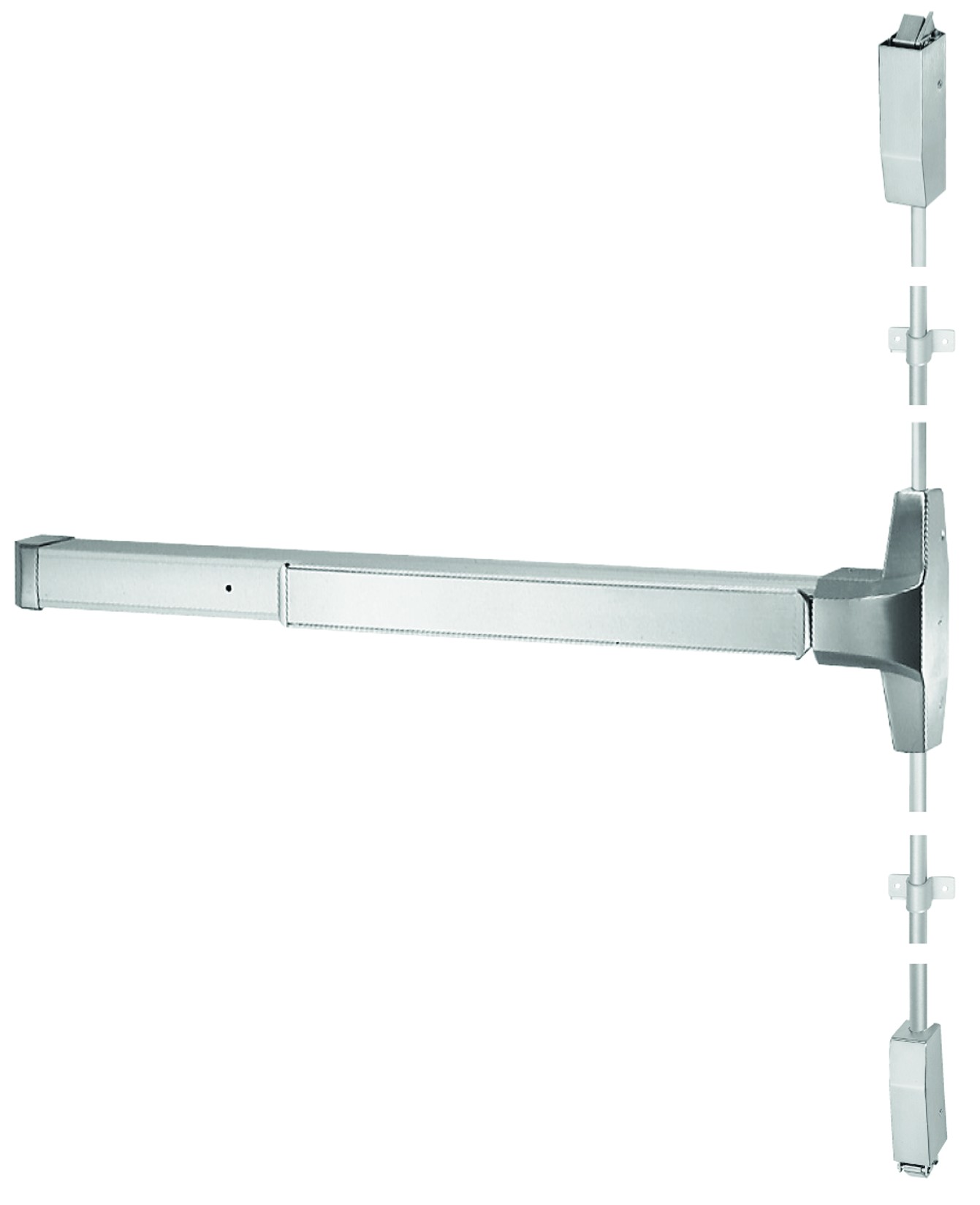

Surface Vertical Rod Exit Device
Wide Style

Certifications and Listings

ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1

Specifications

Device Lengths	available for (36)" 33" (838mm) or (48"), 45" (1137mm)
Door Widths	36" For 29" to 36" (736mm to 914mm) doors 48" For 33" to 48" (838mm to 1219mm) doors
Minimum Stile Width	2-19/32" (66mm)
Latch Bolt	Top latch - 5/8" (16mm) throw, can be deadlocked automatically Bottom latch - 5/8" (16mm) throw, held retracted during door swing

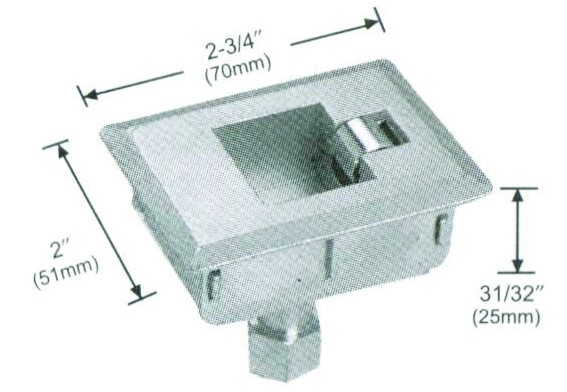

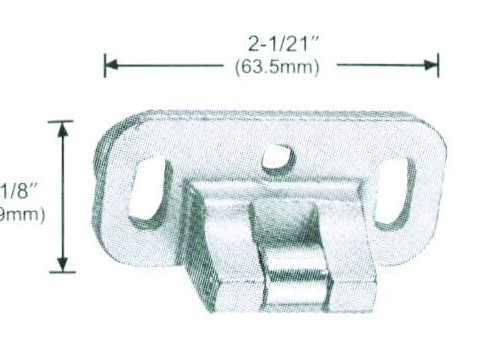

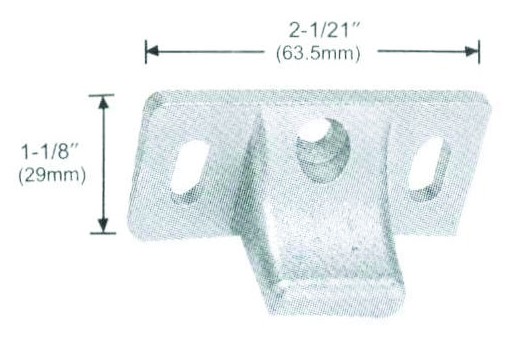

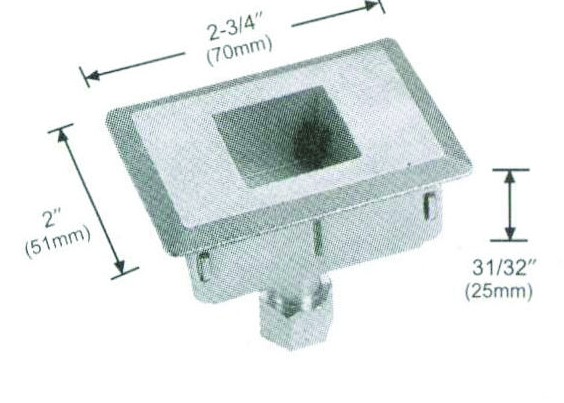

Strikes	Top - 812 For 5230, 822 For 5130F. Btm.815 For 5230, 825 For 5230F
Dogging Kit	Hex key dogging (5230 Device Only)
Fire Device	No Mechanical Dogging
Dogging Options	Cylinder Dogging (CD).
Mounting Fasteners	Non Fire Device - 1/4-20 Machine Screws X SNB Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB)
Mounting Height	Device centerline from finished floor is 40” (1016mm) standard
Projection	Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm)
Door Opening Height	Standard door height is 7', 8' is available
Vertical Rods	1/2” (13mm) diameter tube with rod guides Top rod has two pieces to connect for accommodating 7' or 8' door Bottom rod is one piece, its length is 31-1/4” (794mm)
Finishes	630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order
