ANSI GRADE 1 CAST IRON DOOR CLOSER
Brookline is proud to present our full featured ANSI Grade 1 Cast Iron Door Closer. Our D880 Series door closer offers superior performance with all the full features you expect built into our standard closer. We believe it will not only meet your expectations, but exceed them.
D880 Cast Iron Door Closer
ANSI Grade 1
Full Cover
Specifications:
| Base Material Cast Iron | Cast Iron |
| Cover | Full Plastic Cover- Standard Metal Cover Optional |
| Size Range | 1-6 fully adjustable |
| Adjustments | Adjustable latching and sweep Adjustable backcheck valve Delayed action - Optional |
| Mounting | Regular, Top Jamb, and Parallel Arms-Standard |
| Door Thickness | 1-3/4" (45mm) 2-1/4" (57mm)-Opitional |
| Fasteners | Self Drilling, Self Tapping Machine & Wood Screws SNB (sex nuts and bolts) |
| Corrosion Resistance | Rust inhibiting power |
| Available Finishes | AL (689, DBZ 690) |
| Plated Finishes | By Special Order |
Certifications
- ANSI 156.4, BHMA Certified adjustable size 1-6
- ANSI A117.1 Accessibility Code ADA Compliant
D880 Series
Mounting
Top Jamb
Parallel Arm
Regular Arm
Arms

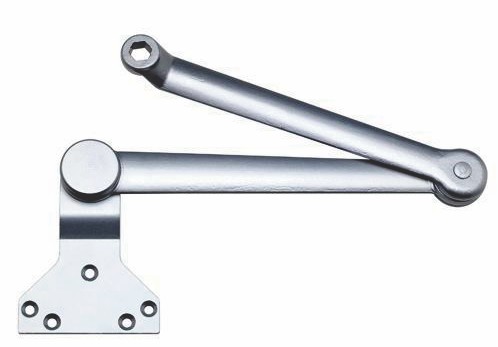

D810
D811
D812
D802
D813
Optional Arms:
| D801 | Standard Arm (Not Pictured) |
| D802 | Hold Open Arm |
| D810 | Extended Duty Arm |
| D811 | Extended Duty Stop Arm |
| D812 | Extended Duty Stop & Hold Arm |
| D813 | Ext. Duty Soft Stop Arm |
| D814 | Ext. Duty Soft Stop & Hold Arm |
Technical Note:Extended Duty Arms Only available for Parallel Arm Application
Drop Plates:
| D821 | Drop Plate Push Side |
| D822 | Drop Plate Parallel Arm Push Side |
| D823 | Drop Plate Top Jamb Push Side |
| D824 | Drop Plate Top Jamb Push Side |
D821
D823
D822
D824
