Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616
Key Switches

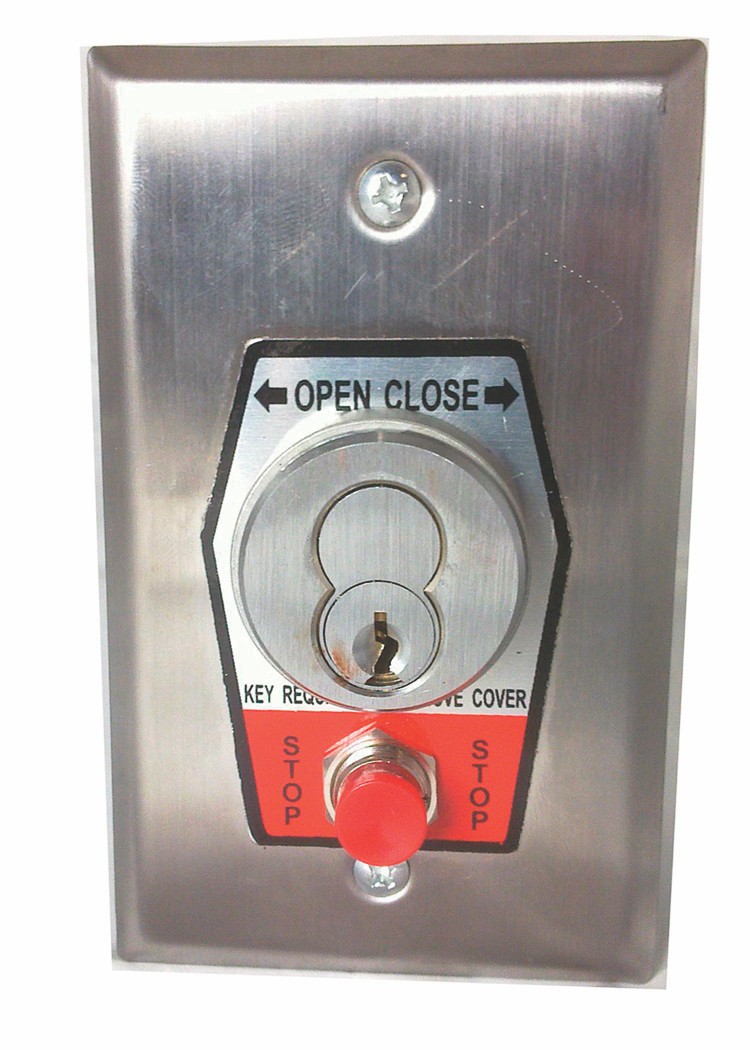

ESS-1GKNFS-FM
Flush Mount Key Switch
with Stop Button
- On / Off (Open / Close) Toggle Key Switch With External Stop Button
- Standard With Gem Box for Mounting in Drywall
- Rated for 30 Amps at 120 Volts AC
- Rated for 15 Amps at 250 Volts DC
- Face Plate 4 1/2” (144mm) x 2 3/4” (70mm)
- Available in BEST SFIC, Schlage LFIC, Standard Cylinder
- Shown with SFIC Cylinder.
Note: Specify Cylinder When Ordering

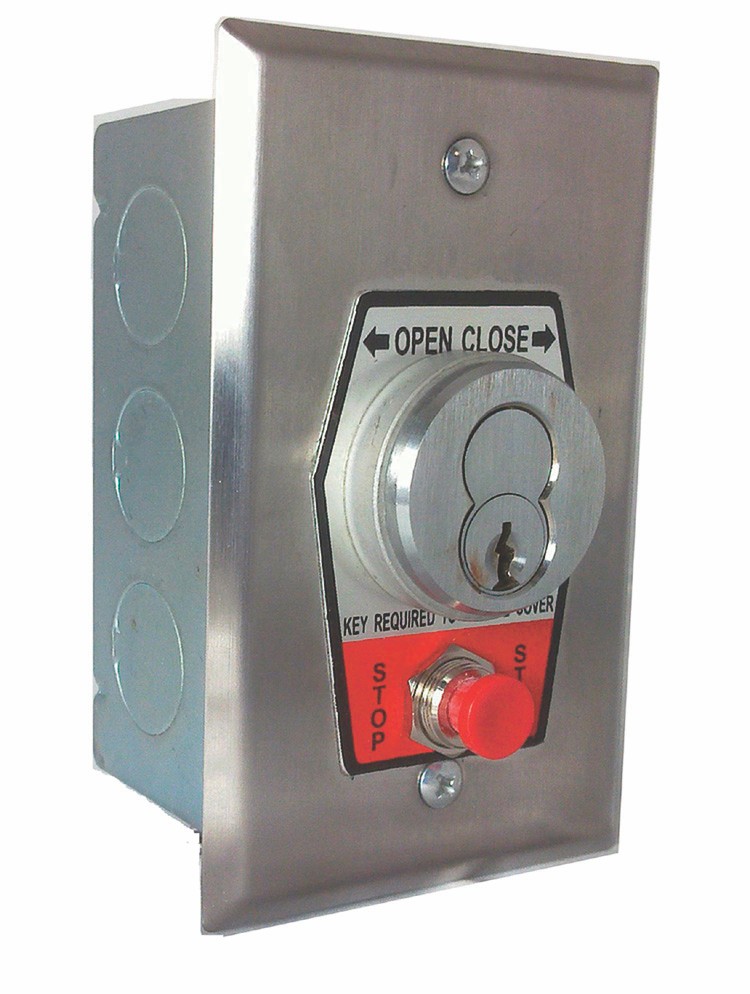

ESS-1GKNFS-SM
Surface Mount Key Switch
with Stop Button
- On/Off (Open/Close) Toggle Key Switch With External Stop Button
- Standard With Handy Box for Surface Mounting
- Rated for 30 Amps at 120 Volts AC
- Rated for 15 Amps at 250 Volts DC
- Face Plate 4 1/2” (144mm) x 2 3/4” (70mm)
- Available in BEST SFIC, Schlage LFIC, Standard Cylinder
- Shown with SFIC Cylinder.
Note: Specify Cylinder When Ordering

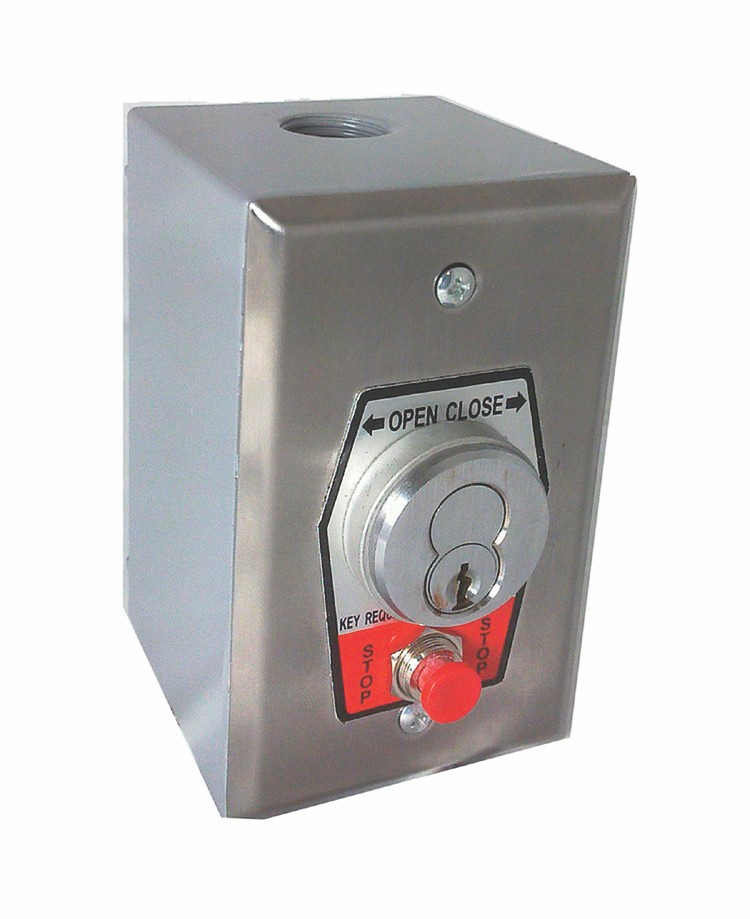

ESS-1GKNFS-DP
Surface Mount Key Switch
with Stop Button
Supplied with Dust Resistant Box
- On/Off (Open/Close) Toggle Key Switch With External Stop Button
- Standard With Dust Resistant Box for Surface Mounting
- Rated for 30 Amps at 120 Volts AC
- Rated for 15 Amps at 250 Volts DC
- Face Plate 4 1/2” (144mm) x 2 3/4” (70mm)
- Available in BEST SFIC, Schlage LFIC, Standard Cylinder
- Shown with SFIC Cylinder.
Note: Specify Cylinder When Ordering
