Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616
Electro-Magnetic Door Holders
Introduction
The MH Series Electromagnetic Fire Door Holders
are constructed of the finest materials available.
Each wall mount door holder is made of durable
die-cast metal and finished in a high lusterdouble
chrome plating for a high quality appearance.
For wall mount units, standard dual voltage AC
or DC inputs reduce stocking requirements with
12/24V and 24/120V models. The 24/120V
model draws a mere 15mA @ 24VAC or DC,
helping keep overall job costs to a minimum.
The basic units offer superiority reliability with
built-in transient protection and low residual
magnetism so they release easily even on new
ADA low pressure door closers.
Features, Options, and Dimensions
- 15 mA @ 24V
- Optional Recessed Mount
- Dual Voltage Inputs
- Self-Adjusting Swivel Catch Plate Adjusts to Changes In Door Alignment
- Optional Extention Rod For Greater Jardware Clearance
- Low Residule Magnetism
- Built-In Transient Protection
- Available In Single & Double Floor Mounted Units
Performance Data

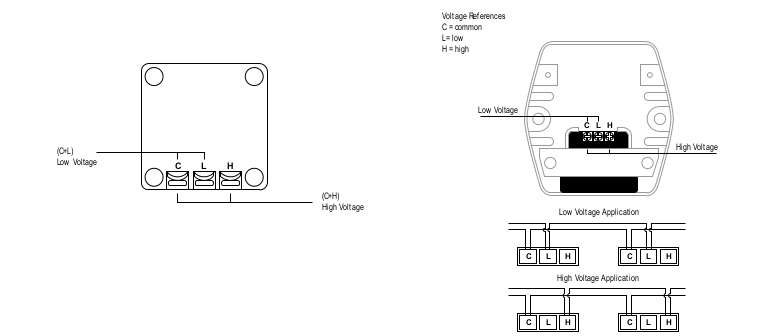

| Model | Voltage | DC/mA | AC/mA | Terminals | Coil | lbs | kg. (Nominal) |
| MHX*-1224 | 12V | 30 | 30 | C&L | Single | 35 | 15.9 |
| 24V | 15 | 15 | C&H | Single | 35 | 15.9 | |
| MHX*-24120 | 24V | 15 | 15 | C&L | Single | 35 | 15.9 |
| 120V | -- | 15 | C&H | Single | 35 | 15.9 | |
| MHFM†-1224 | 12V | 60 | 60 | C&L | Double | 35 | 15.9 |
| 24V | 60 | 60 | C&H | Double | 35 | 15.9 | |
| MHFM†-24120 | 24V | 30 | 30 | C&L | Double | 35 | 15.9 |
| 120V | -- | 30 | C&H | Double | 35 | 15.9 |
*For all models, "X" represents either F (Flush Mount), FM (Floor Mount), R (Recessed), or S (Surface Mount).
†For Floor Mount, double coil models.
NOTE: Voltage supplied by a UL Listed control panel
Ordering Information
| Model | Description |
| Wall Mount | |
| MHR-1224C | 12 or 24 VDC/VAC, recess-mount, chrome, with 3” Extension |
| MHR-24120C | Rod 24 VDC/VAC 120VAC, recess-mount, chrome, with 3” |
| MHF-1224C | Extension Rod 12 or 24 VDC/VAC, semi-flush-mount, chrome |
| MHF-24120C | 24 VDC/VAC 120VAC, recess-mount, chrome |
| MHS-1224C | 12 or 24VDC/VAC, surface-mount, chrome |
| MHS-24120C | 24VDC/VAC 120VAC, surface-mount, chrome |
| Floor Mount | |
| MHFM1-1224 | Single coil, 12 or 24VDC/VAC, floor-mount, brushed steel |
| MHFM1-2410 | Single coil, 24VDC/VAC 120VAC, floor-mount, brushed steel |
| MHFM2-1224 | Double coil, 12 or 24VDC/VAC, floor-mount, brushed steel |
| MHFM2-2410 | Double coil, 24VDC/VAC 120VAC, floor-mount, brushed steel |
| Extension Rods | |
| MH-ER1C | 1" chrome |
| MH-ER3C | 3" chrome |
