Exit Devices - Product Details
Model
Product Description/Features

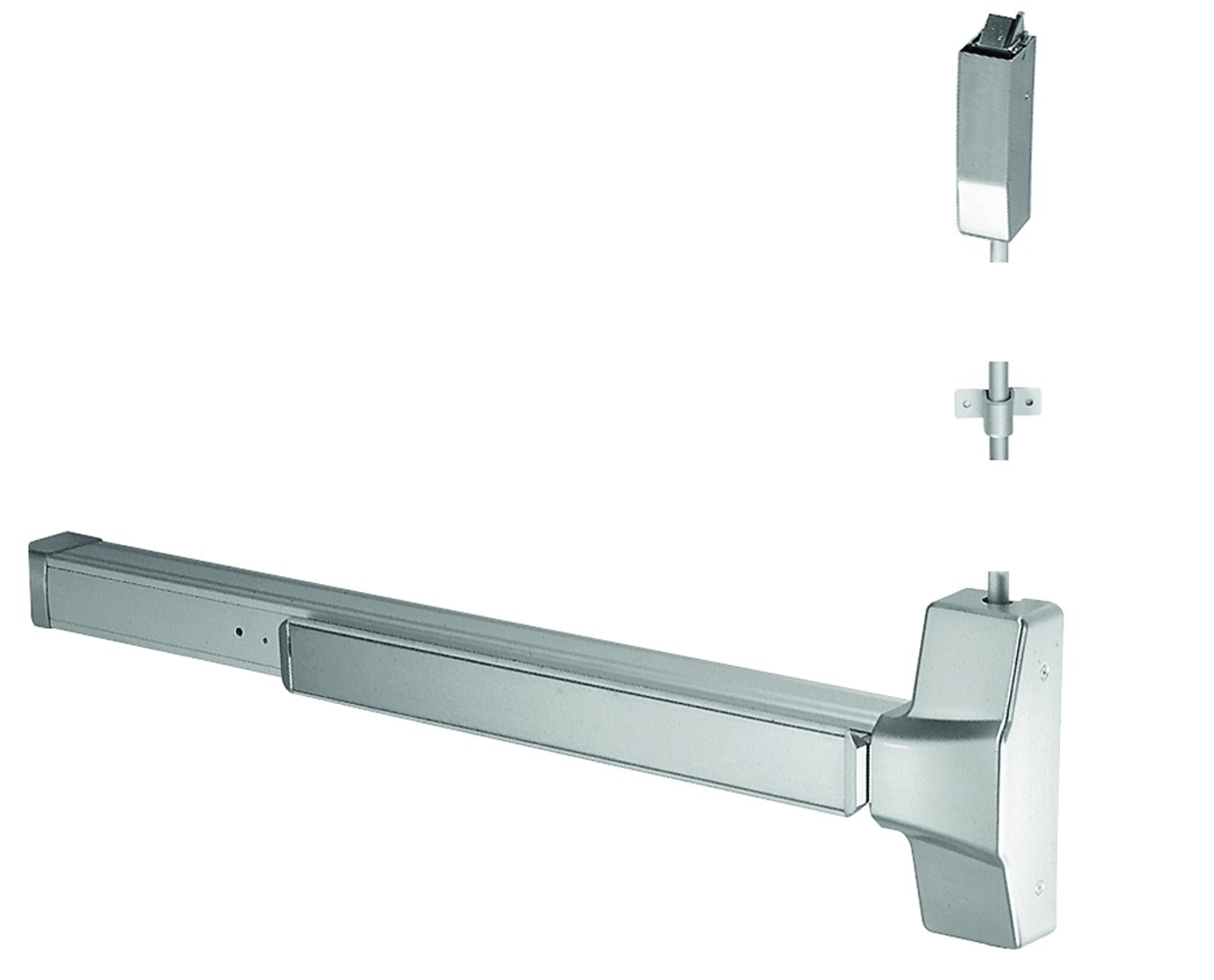

E5130 LBR
E5130F LBR
Surface Vertical Rod Exit Device LBR (Less Bottom Rod)
Wide Style
Certifications and Listings
ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1
Specifications
| Device Lengths | Available for (36)" 33" (838mm) or (48"), 45" (1137mm) |
| Door Widths | 36" For 29" to 36" (736mm to 914mm) doors 48" For 33" to 48" (838mm to 1219mm) doors |
| Minimum Stile Width | 4-1/4" (107mm) |
| Latch Bolt | Top latch - 5/8" (16mm) throw, can be deadlocked automatically |
| Strikes | Top - E812 For 5130LBR, E822 For 5130F. LBR or E869 For 5130 LBR or 5130F LBR |
| Dogging Kit | Hex key dogging (5130 LBR Device Only) |
| Fire Device | No Mechanical Dogging |
| Dogging Options | Cylinder Dogging (CD). |
| Mounting Fasteners | Non Fire Device - 1/4-20 Machine Screws Standard Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB) |
| Mounting Height | Device centerline from finished floor is 40" (1016mm) standard |
| Projection | Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm) |
| Door Opening Height | Standard door height is 7', 8' is available |
| Vertical Rods | 1/2" (13mm) diameter tube with rod guides Top rod has two pieces to connect for accommodating 7' or 8' door |
| Finishes | 630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order |
E-812
E-822

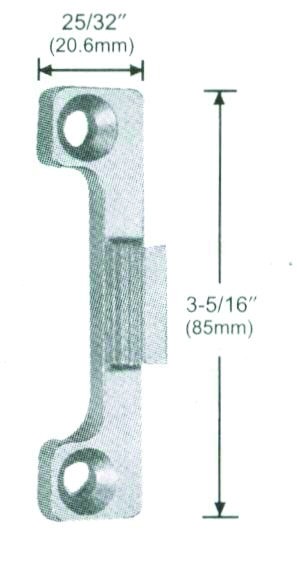

E-689
