Constant Latching and Automatic Flushbolts

Constant Latching Flush Bolts

Brookline Self Latching Flush Bolt (A Label 3 Hour Fire Exit Hardware) Is Constant Latching And is Designed to operate in Conjuction With Our EFLB Fire Latch Bolt or an Bottom Automatic Flush Bolt. A Self Latching Flushbolt Installed on the top of an inactive door remains latched until the active door is opened, releasing the Self latching Bolt The Inactive door will relatch automatically when closed.

Specifications:

Label A Label (# Hour Fire Exit Hardware)
Hand Non-Handed
Face Plate 1" x 6-3/4"(25.4mm x 171mm)
Strike 2-1/4" x 15/16"(57mm x 24mm)

ECFBM

Constant Latching Flush Bolt For Metal Doors




ECFBW

Constant Latching Flush Bolt For Metal Doors

flushbolt

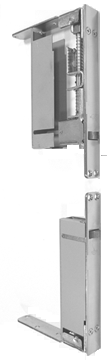

Automatic Flush Bolts

Brookline Automatic Flush Bolts UL Listed (A Label 3 Hour Fire Exit Hardware) Are Used on The Inactive Door in a Pair of Doors.The inactive door is latched when active door closes, bolts retract when active door is opened Brookline Auto Flush Bolts May Also Be Used With The EFLB Fire Latch Bolt in Place of The Bottom Auto Flush Bolt Where Floor Conditions Are Not Favorable.

Specifications:

Label A Label (3 Hour Fire Exit Hardware) cUL and UL Listed
Hand Non-Handed
Face Plate 1" x 8-1/2"(25.4mm x 216mm)
Strike 2-1/4" x 15/16"(57mm x 24mm)

ECFBM

Constant Latching Flush Bolt For Metal Doors

EAFBM

ECFBW

Constant Latching Flush Bolt For Metal Doors

EAFBW
