Electric Exit Devices

MODEL ANSI NO PRODUCT DESCRIPTION & FEATURES

E580EL

Rim
SVR
CVR
Devices
(Fail-Safe)
E5100 Series

08 • Storeroom Escutcheon Trim
• Turning Key Unlocks Lever To Withdraw Latchbolt
• Trim Locked When Power Applied
• Trim Unlocks When Power Removed (Fail Safe)
• Multi Voltage 12 or 24 VDC
• Escutcheon Plate Dimensions 9-7/16” x 2-15/26” x 13/16” (240mm x75mm x 21mm)
• Trim Requires Standard 1-1/4” Mortise Cylinder or IC Shell
• Trim Through Bolts Through The Device Head To Maintain Proper Alignment and For Greater Security

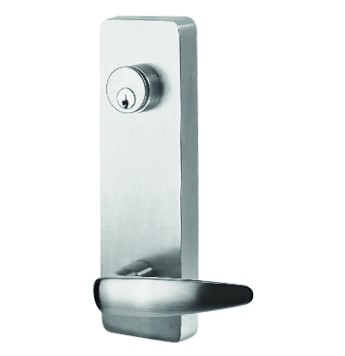

E580EL

E580EU

Rim
SVR
CVR
Devices
(Fail-Safe)
E5100 Series

08 • Storeroom Escutcheon Trim
• Turning Key Unlocks Lever To Withdraw Latchbolt
• Trim Unlocks When Power Applied
• Trim Locks When Power Removed (Fail Secure)
• Multi Voltage 12 or 24 VDC
• Outside Lever Always Active (Freewheeling)
• Escutcheon Plate Dimensions 9-7/16” x 2-15/26” x 13/16” (240mm x75mm x 21mm)
• Trim Requires Standard 1-1/4” Mortise Cylinder or IC Shell
• Trim Through Bolts Through The Device Head To Maintain Proper Alignment and For Greater Security
E580EU

Finishes: 630 Standard, 605, 606, 610, 613, 619, 625, 626 By Special Order

EPS1N

Regulated 24VDC
Exit Trim Power Supply


eps2
Input Voltage 120VAC
Output Voltage 24 VDC regulated @ 1A
Temperature Range 0 to 120 F
Inputs One Solid-State Input
Outputs One Solid-State Output
LED Red Power Indicator
LED Green Channel On
Dimensions 10"(254mm) x 10"(254mm) x 4"(102mm)


Specifications

  • UL Listed
  • Solid-state electronic relay
  • One dry inputs and one wet inputs
  • Built in Fire Alarm Contacts
  • Solid-state reverse polarity protection for battery connections
