High Abuse Hinges - Template

Model No.	Features	Images	Diagram

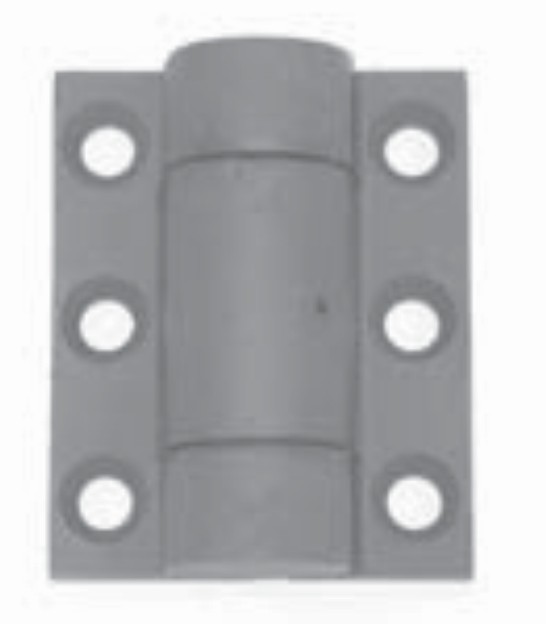

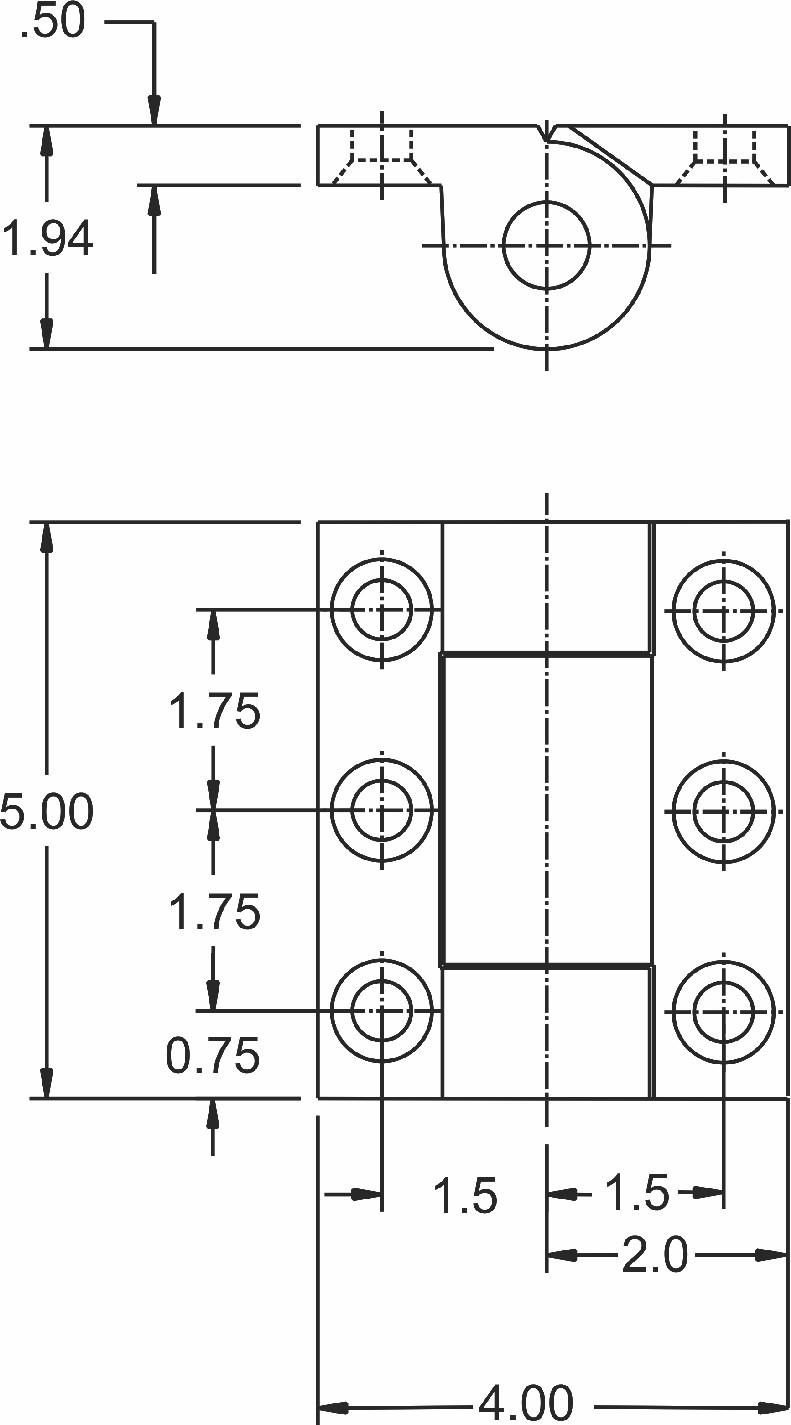

5X400D Heavy Duty Hinge (Non Handed) Doors with 2 Hinges Weight to 500lbs (226kg) Doors with 3 Hinges Weight to 750lbs (342kg)	Heavy Weight Surface Mounted Hinge for High Abuse Applications 1/2" (12.7)mm Thick Heavy Duty Steel Leaves 3/4" (19.1)mm Hardened Steel Pin Knurled and Pressed Into Blind Hole Internal Thrust Bearings with Hardened Steel Ball Bearings External Lubrication Point Provided in Knuckle Supplied with 1/2"-13 x 1" Steel Security Screws with Break Away Head Supplied in Prime Coat Finish. Special Finishing Available on Request This Product Meets Buy America Welded Pin Construction or Non Standard Hole Patterns Available on Request

Model No.	Features	Images	Diagram

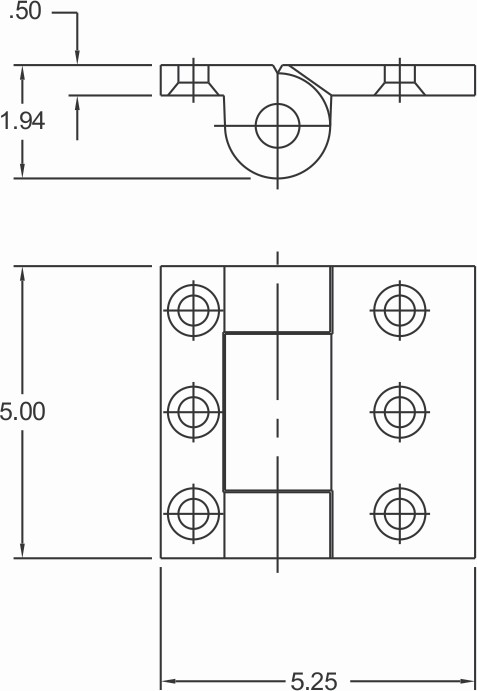

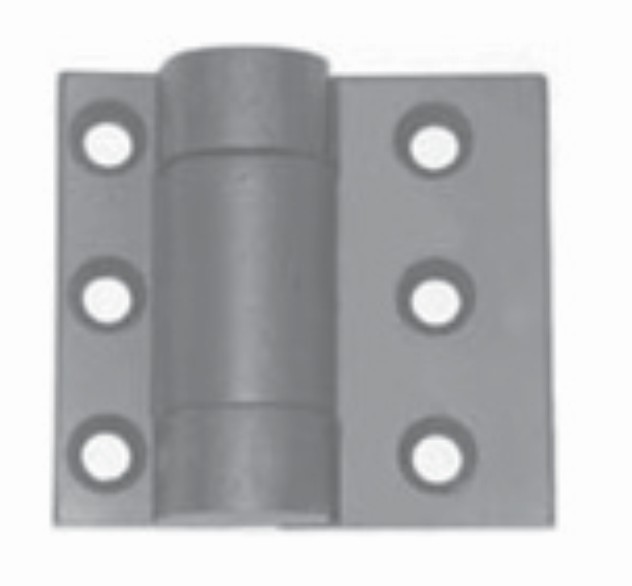

5X525D Heavy Duty Hinge Doors with 2 Hinges Weight to 500lbs (226)kg Doors with 3 Hinges Weight to 750lbs (342)kg	Heavy Weight Surface Mounted Hinge for High Abuse Applications 1/2" (12.7)mm Thick Heavy Duty Steel Leaves 3/4" (19.1)mm Hardened Steel Pin Knurled and Pressed Into Blind Hole Internal Thrust Bearings with Hardened Steel Ball Bearings External Lubrication Point Provided in Knuckle Supplied with 1/2"-13 x 1" Steel Security Screws with Break Away Head Supplied in Prime Coat Finish. Special Finishing Available on Request This Product Meets Buy America Welded Pin Construction or Non Standard Hole Patterns Available on Request
