High Abuse Hinges

Model No. Description

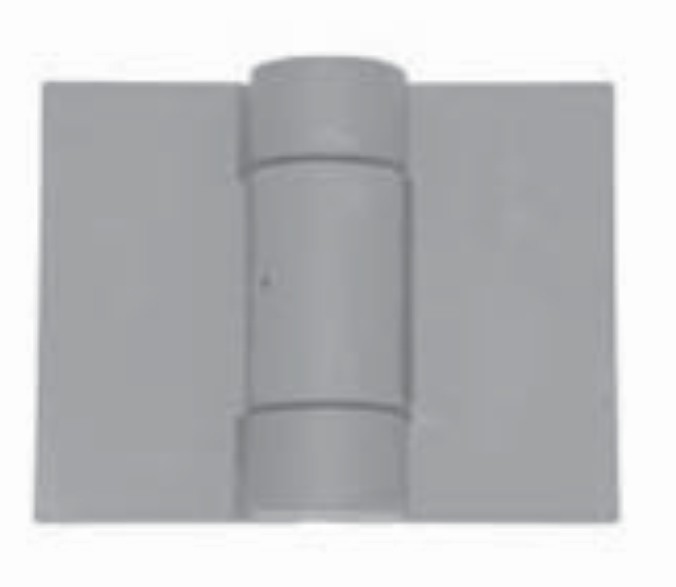

Heavy Duty Hinge
Hole Patterns Per Specification

Doors with 2 Hinges
Weight to 500lbs (226kg)
Doors with 3 Hinges
Weight to 750lbs (342kg)

• Heavy Weight Surface Mounted Hinge for High Abuse Applications
• 1/2” (12.7mm) Thick Heavy Duty Steel Leaves
• 3/4” (19.1mm) Hardened Steel Pin Knurled and Pressed Into Blind Hole
• Internal Thrust Bearings with Hardened Steel Ball Bearings
• External Lubrication Point Provided in Knuckle
• Supplied with 1/2”-13 x 1” Steel Security Screws with Break Away Head
• Supplied in Prime Coat Finish. Special Finishing Available on Request
• This Product Meets Buy America
• Welded Pin Construction or Non Standard Hole Patterns Available on Request

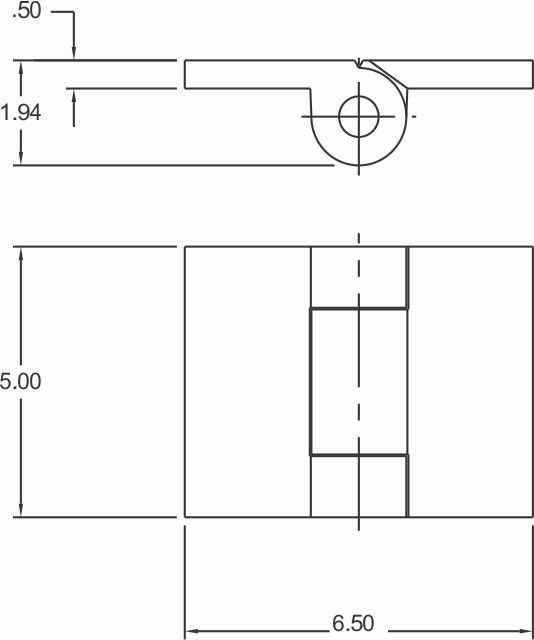

5X650C 5X650C 5X650C Diagram
