Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616

Spring Hinges -- Steel

Model No. Description

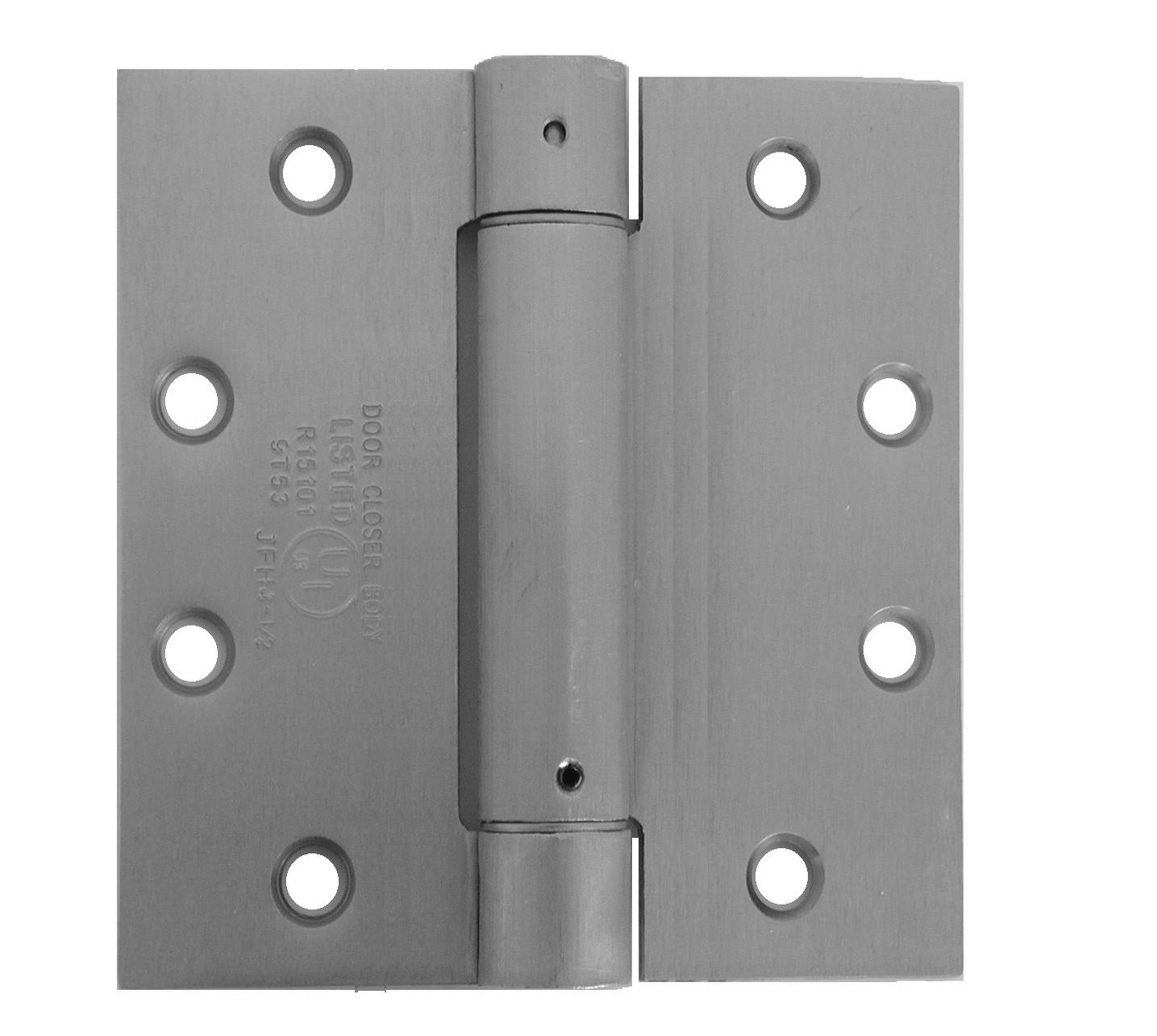

TPS4540

Plain Steel .134" (3.4mm)
Full Mortise Hinge
Commercial Grade
4.5"(114.3) x 4"(101.6)

• UL Listed for fire doors
• Steel base material
• Meets NFPA 80 for 3 hour fire doors (minimum 2 per door)
• Template screw hole locations to speed installation
• Maximum door weight 130 lbs (59)kg
• Max door size 3’ x 7’6” (914 x 2286)mm (2 hinges per door)
• Conforms to ANSI K81071F
• Available in USP, 3, 4, 10, 10A, 26, 26D
TPS4540

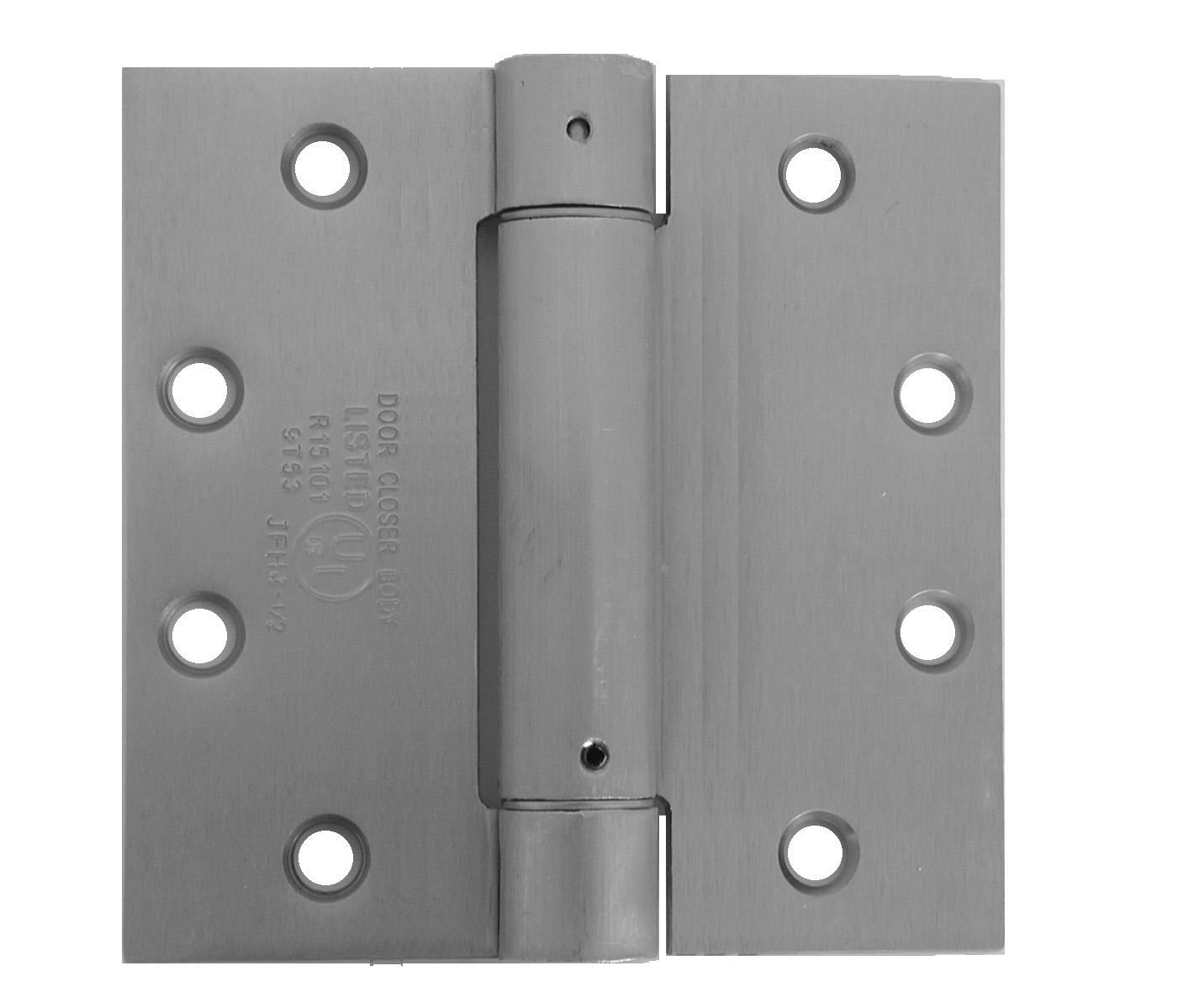

TPS4545

Plain Steel .134" (3.4mm)
Full Mortise Hinge
Commercial Grade
4.5"(114.3) x 4.5"(114.3)

• UL Listed for fire doors
• Steel base material
• Meets NFPA 80 for 3 hour fire doors (minimum 2 per door)
• Template screw hole locations to speed installation
• Maximum door weight 180 lbs (82)kg
• Max door size 3’ x 7’6” (914 x 2286)mm (3 hinges per door)
• Conforms to ANSI K81071F
• Available in USP, 3, 4, 10, 10A, 26, 26D
TPS4540
