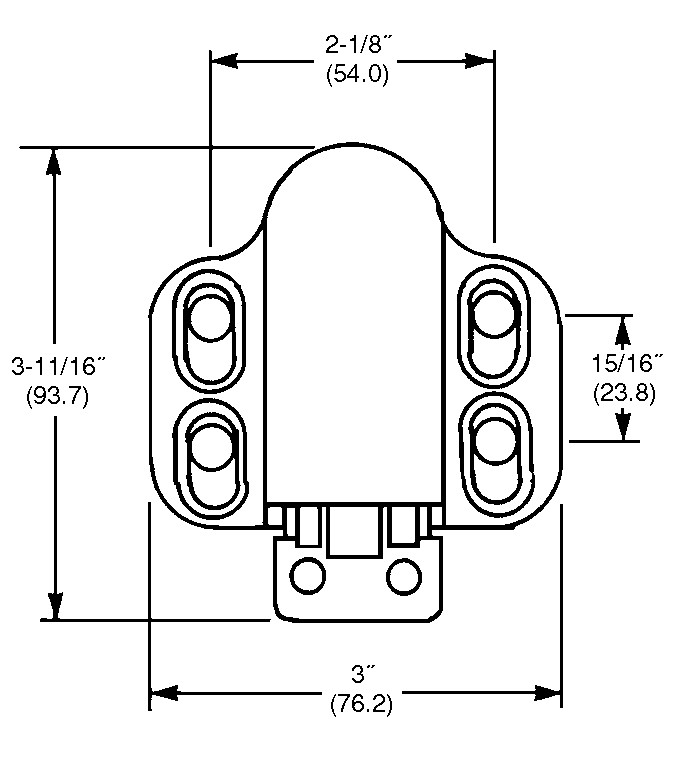

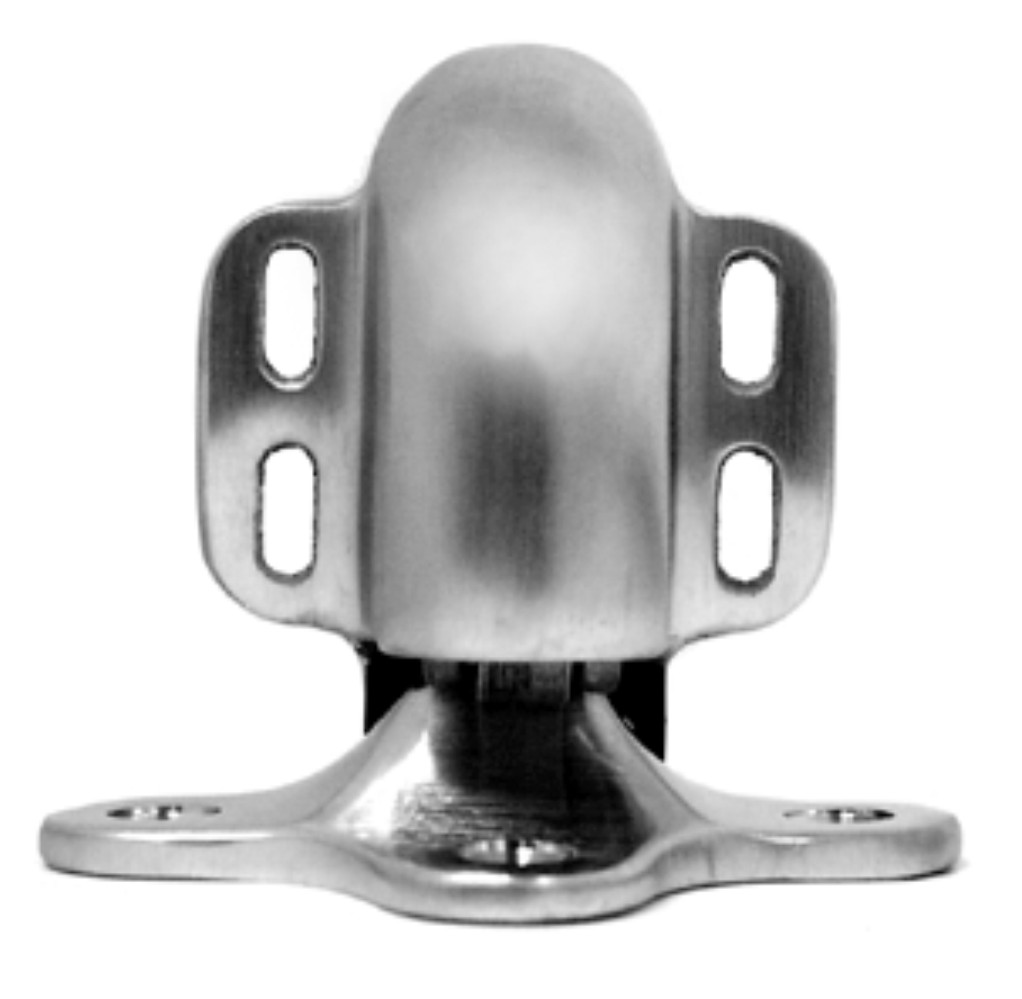

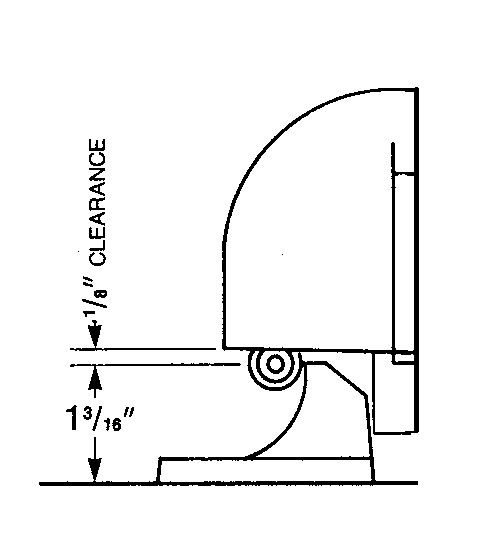

1319F Floor Mounted
Adjustable Automatic Holder
Heavy Duty  | - Heavy duty cast brass
- Extra heavy duty rubber pad to absorb shock and reduce noise
- Vertical adjustment on body
- Conforms to Fed Spec. No. 1168
- Meets ANSI A156.16 BHMA L11301
- Supplied for wood or concrete application
- Available in standard brass base finishes
 |   |

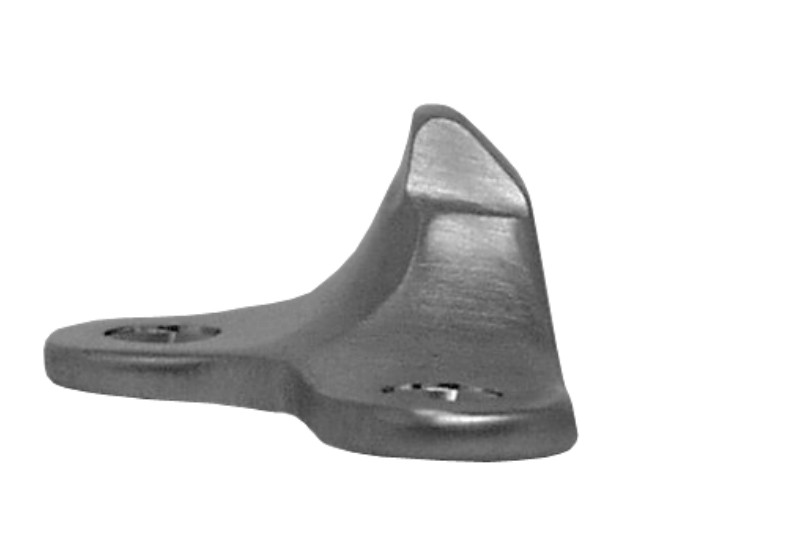

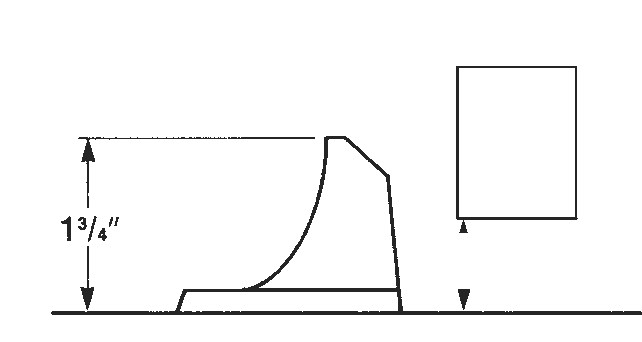

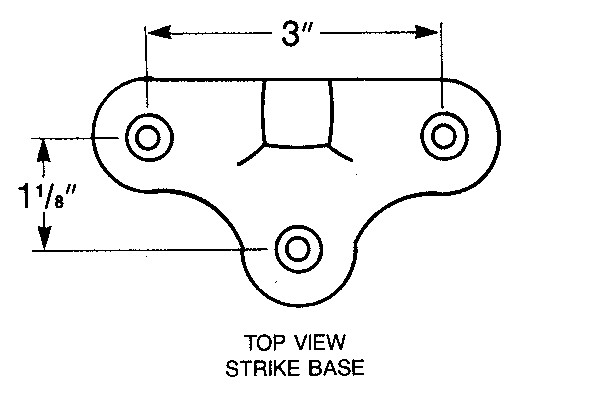

1319FS-2

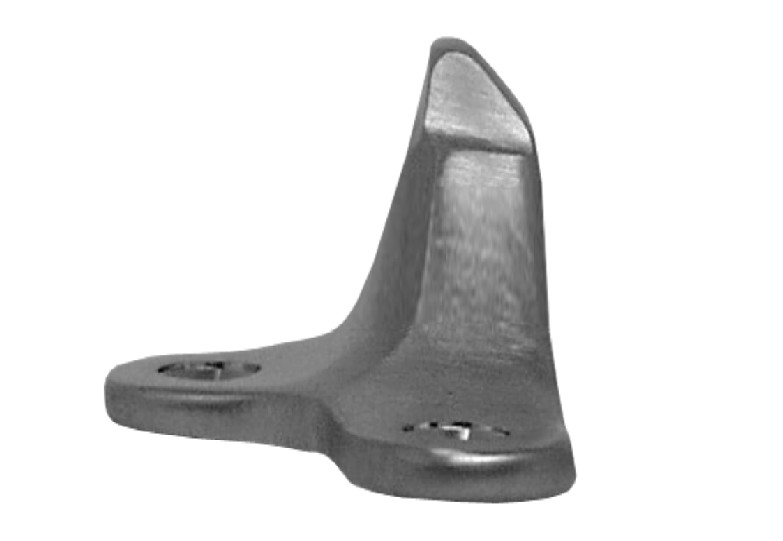

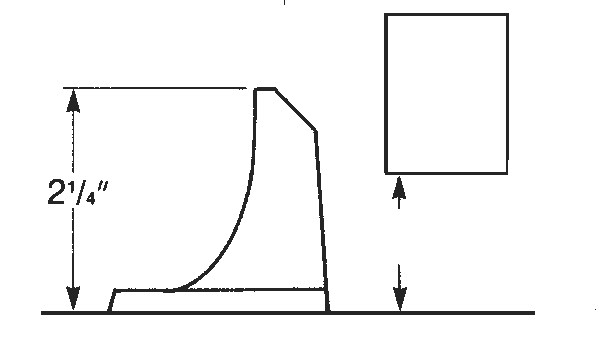

1319FS-3

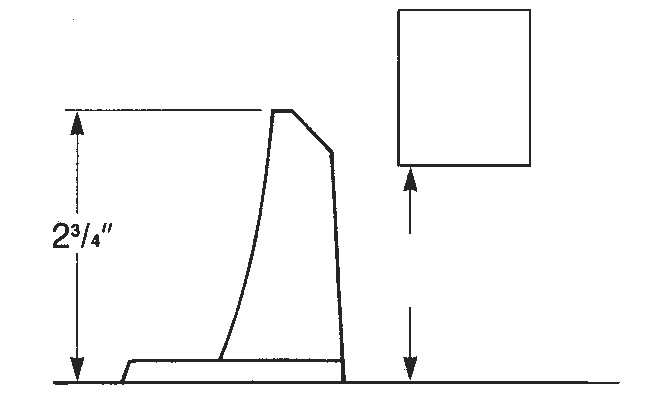

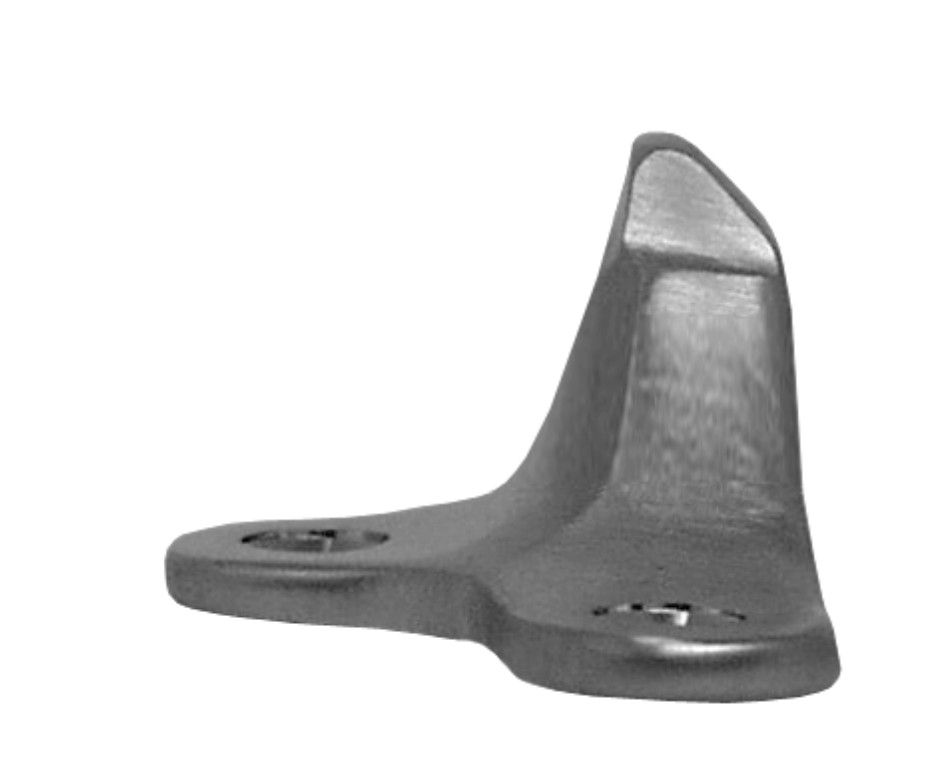

1319FS-4 Floor Mounted Strikes   | - For 1319 Automatic door holder
- Heavy duty cast brass
- For doors with large undercuts or unusual floor conditions
- Supplied for wood or concrete application
- Available in standard brass base finishes
| |

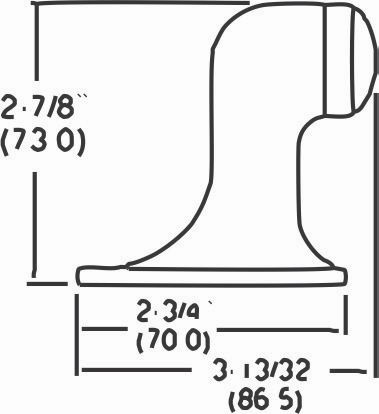

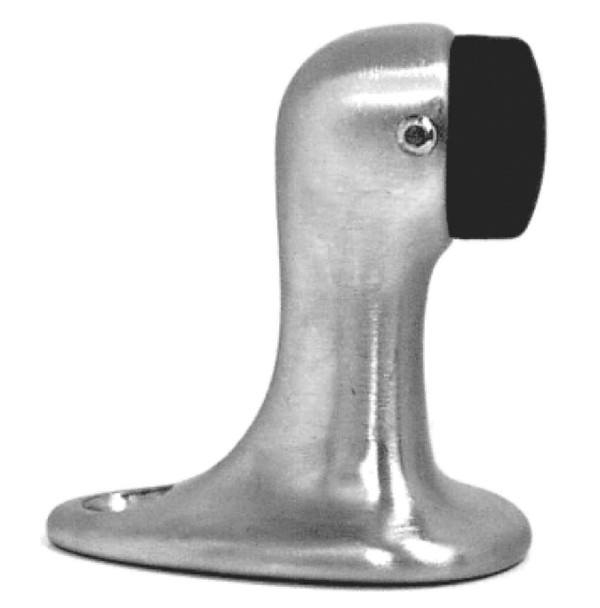

1322 Floor Door Stop  | - Heavy duty cast brass
- For doors undercut up to 2" (50.8)mm
- Non marking rubber tip
- Conforms to ANSI A156.16 BHMA L12121 or L12131
- Supplied with lag screw for wood and expansion shield for concrete
- Available in brass base architectural finishes
|  |

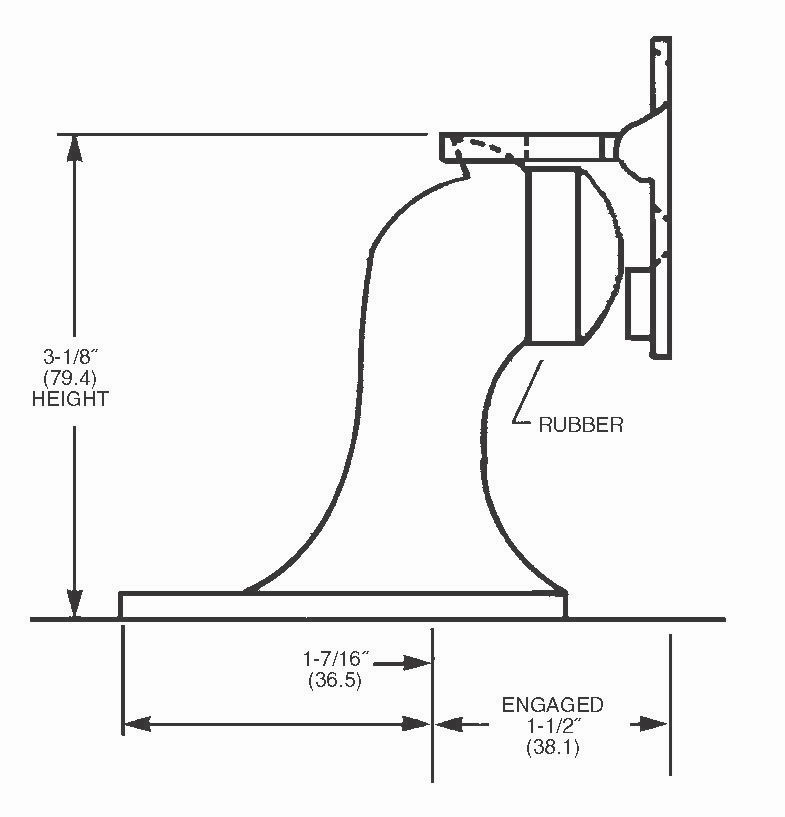

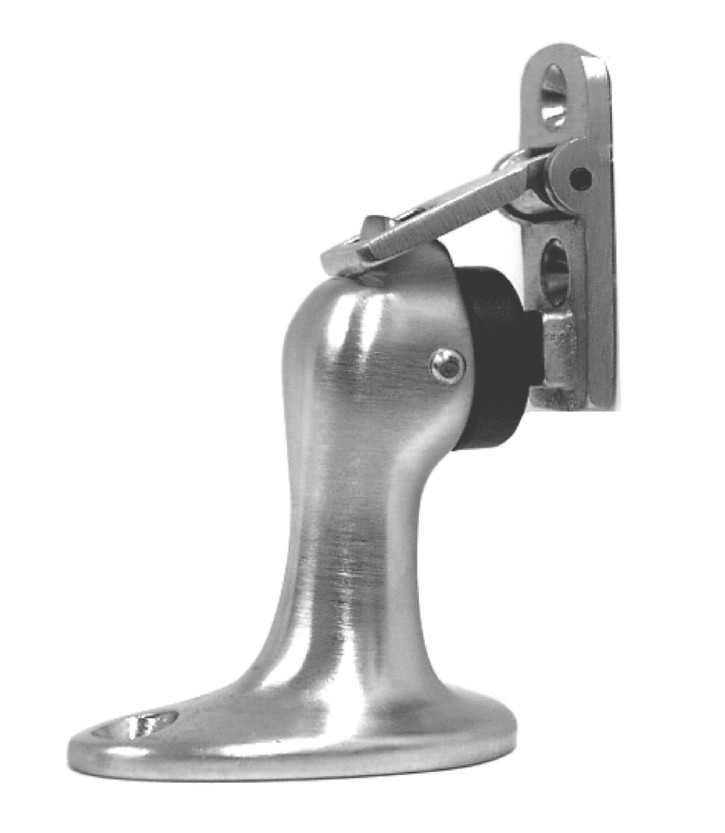

1323 Floor Door Stop With Holder  | - Heavy duty cast brass
- Accommodates doors undercut up to 2"(50.8)mm
- Non marking rubber tip
- Conforms to ANSI A156.16 BHMA L11361 or L11371
- Supplied with lag screw for wood and expansion shield for concrete
- Available in brass base architectural finishes
|  |

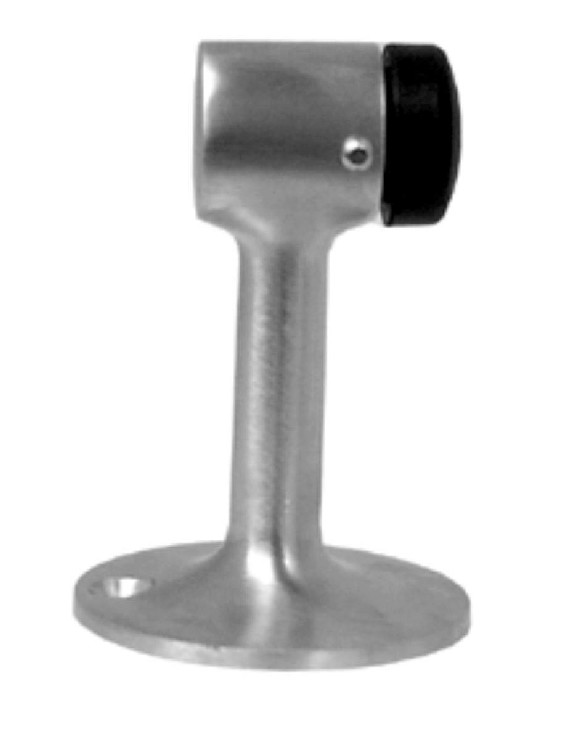

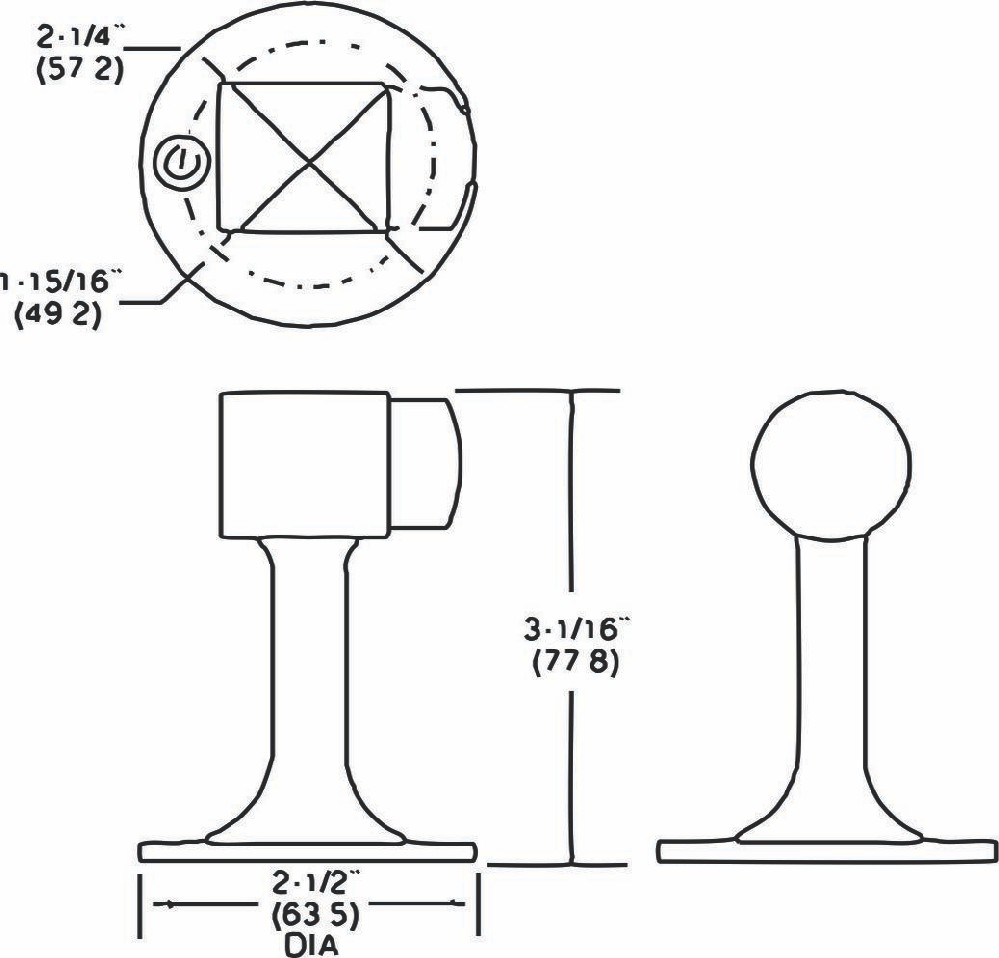

1328 Floor Door Stop Heavy Duty  | - Heavy duty cast brass
- For doors undercut up to 2-1/2"(63.5mm)
- Non marking rubber tip
- Conforms to Fed. Spec. No. 1328 and 1328E with expansion shield
- Meets ANSI A156.16 BHMA L12121 or L12131
- Supplied with lag screw for wood and expansion shield for concrete
- Available in brass base architectural finishes
|  |

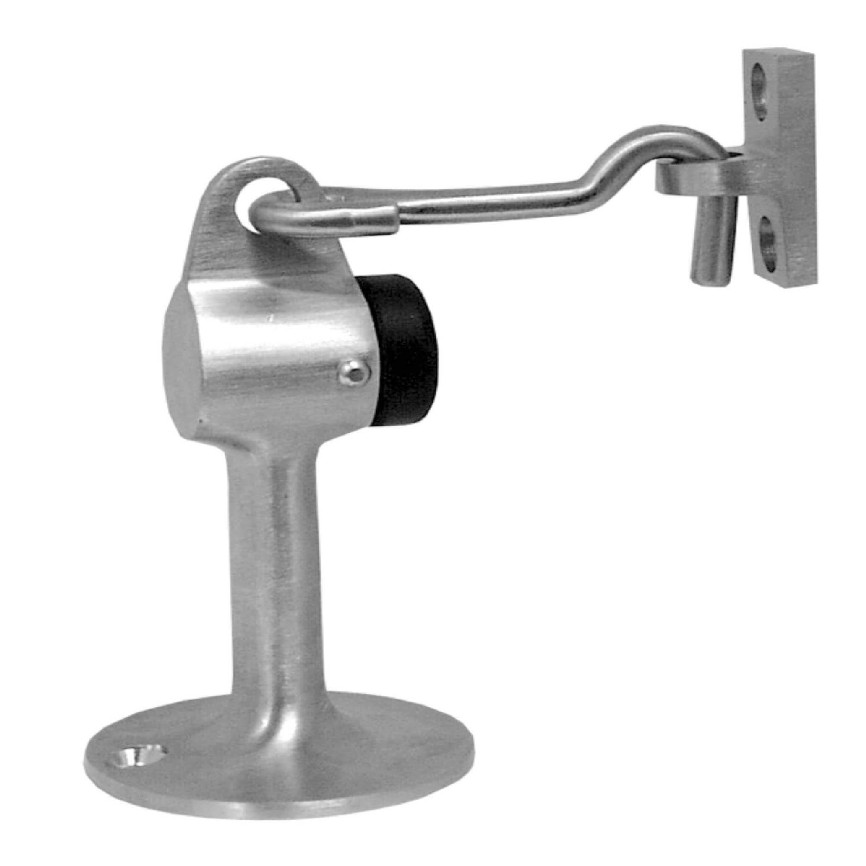

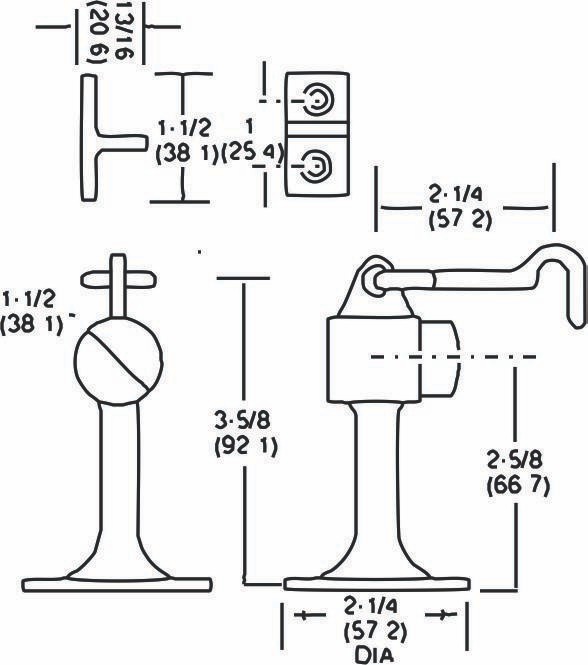

1329 Floor Door Stop Heavy Duty With Holder  | - Heavy duty cast brass
- For door undercut up to 2-1/2"(63.5mm)
- Non marking rubber tip
- Conforms to Fed. Spec. No. 1329 and 1329E with expansion shield
- Meets ANSI A156.16 BHMA L11361 or L11371
- Supplied with lag screw for wood and expansion shield for concrete
- Available in brass base architectural finishes
|  |

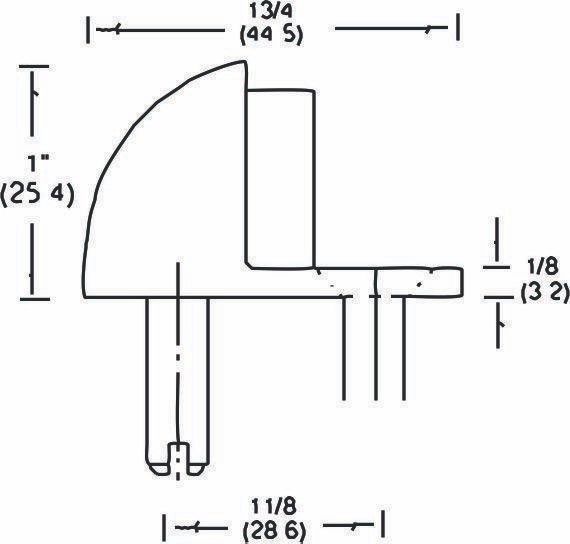

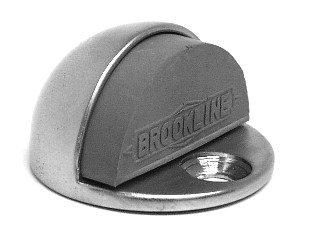

1330 Floor Door Stop  | - Solid cast brass
- Gray non-marking rubber bumper
- Conforms to Fed. Spec. No. 1330 with wood screws and 1330E with expansion shield
- Conforms to ANSI A156. 16 BHMA L12141
- Supplied with wood screw and plastic anchor
- Available in brass base architectural finishes
|  |

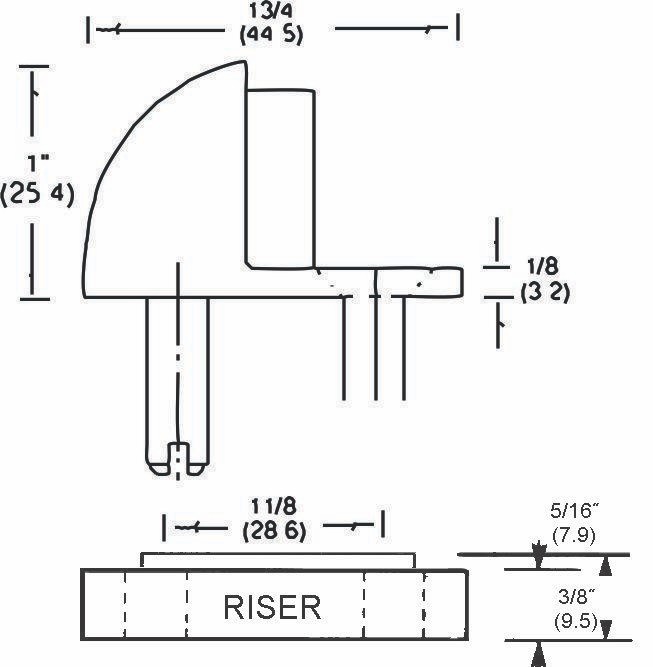

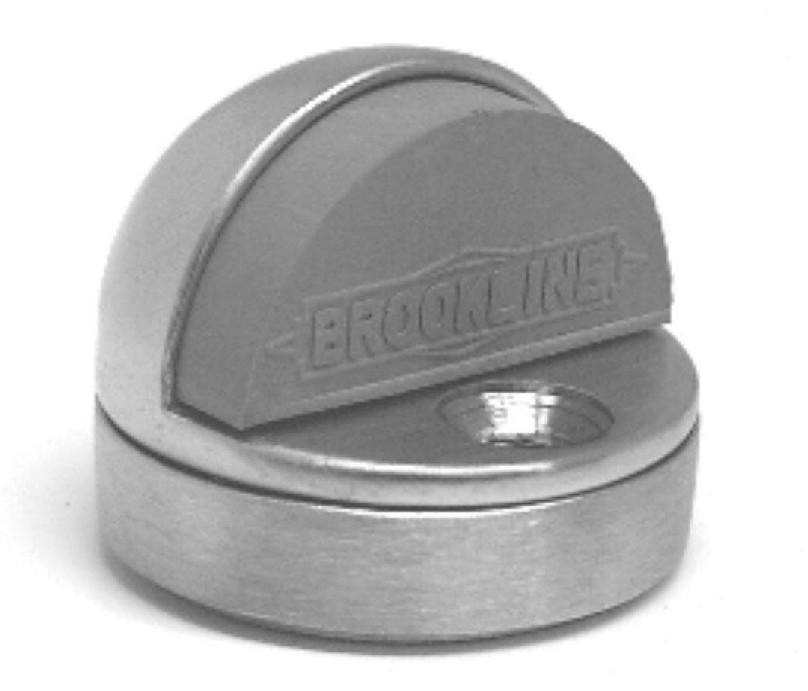

1330R Floor Door Stop With Riser  | - Same as 1330 but includes 3/8"(9.53mm) cast riser
- Available in brass base architectural finishes
|  |

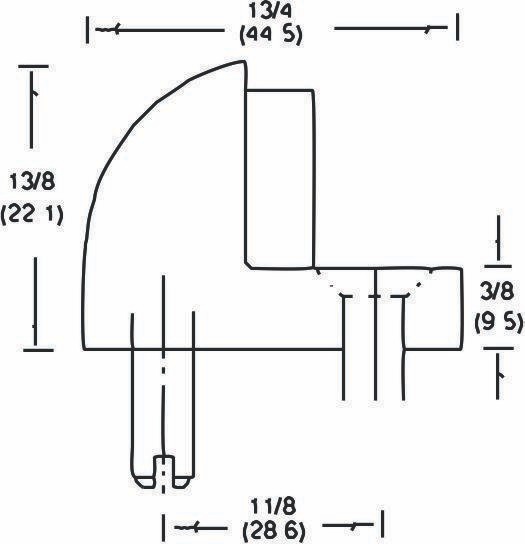

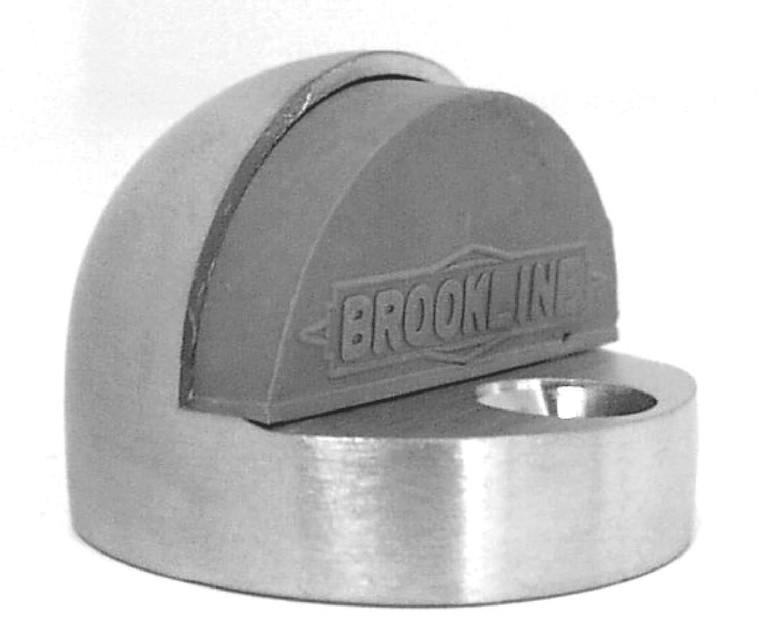

1331A Floor Door Stop High Rise  | - Solid cast brass
- Gray non-marking rubber bumper
- Conforms to Fed. Spec. No. 1330A with wood screws and 1330AE with expansion shield
- Conforms to ANSI A156. 16 BHMA L12161
- Supplied with wood screw and plastic anchor
- Available in brass base architectural finishes.
|  |

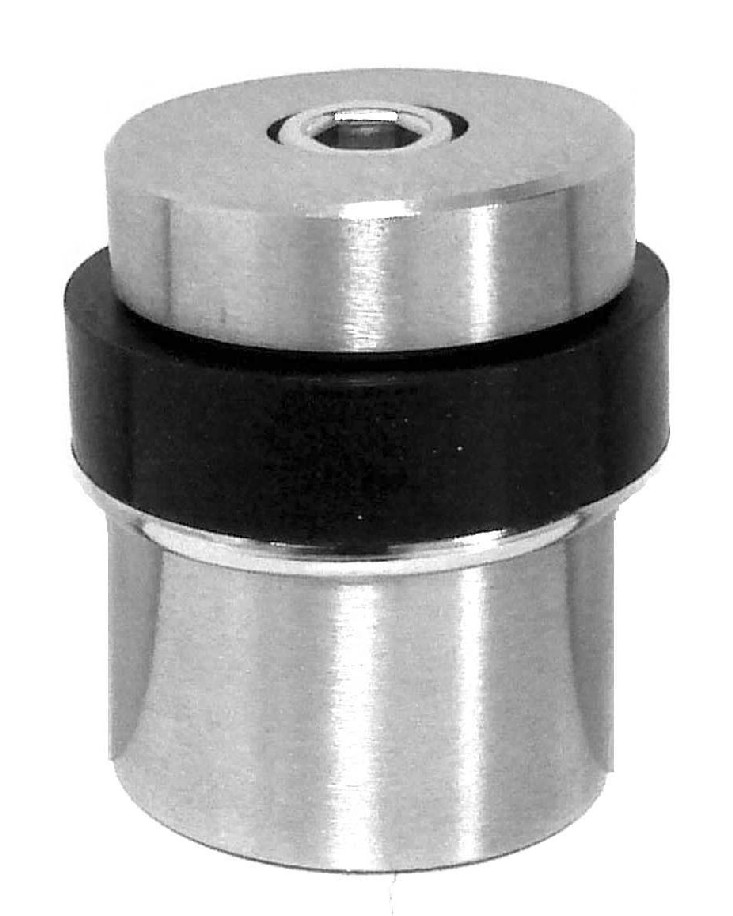

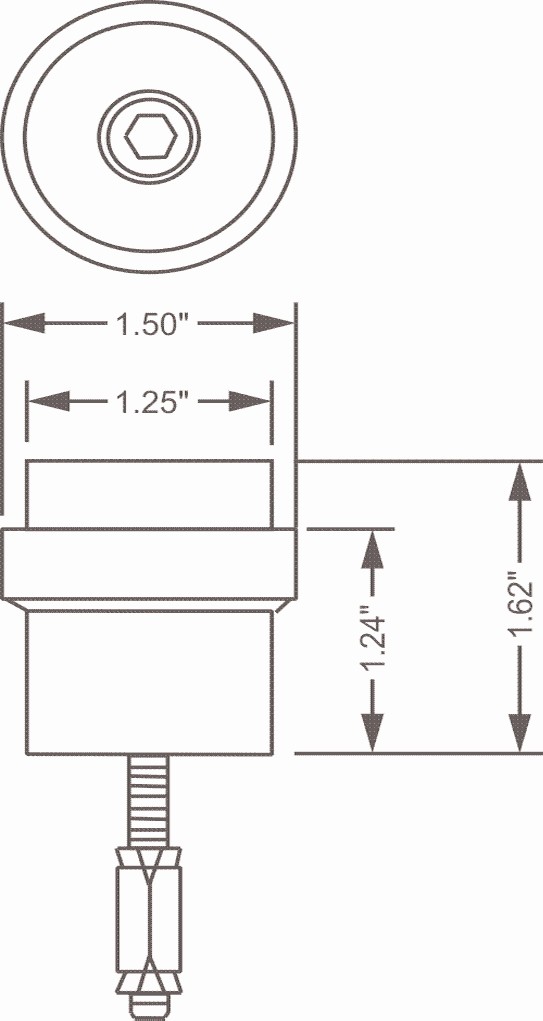

1333 Circular Floor Door Stop High Rise  | - Brass or Stainless Steel
- Black non-marking rubber bumper
- 5/16 - 18 Expansion Shield
- 5/16 - 18 Hex Head Socket Cap Screw
- Available in brass base architectural finishes and Brushed or Polished Stainless Steel.
|  |
