Intermediate Pivots
| 1257 E2W | 2 Wire |
| 1257 E4W | 4 Wire |
| 1257 E8W | 8 Wire |
Power Transfer

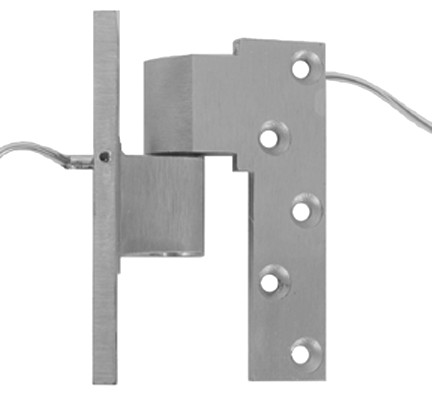

Immediate Offset Pivot
Full Mortise (Handed)
| 1257 M4W | 4 Wire |
| 1257 M8W | 8 Wire |
Power Transfer
Door Monitoring

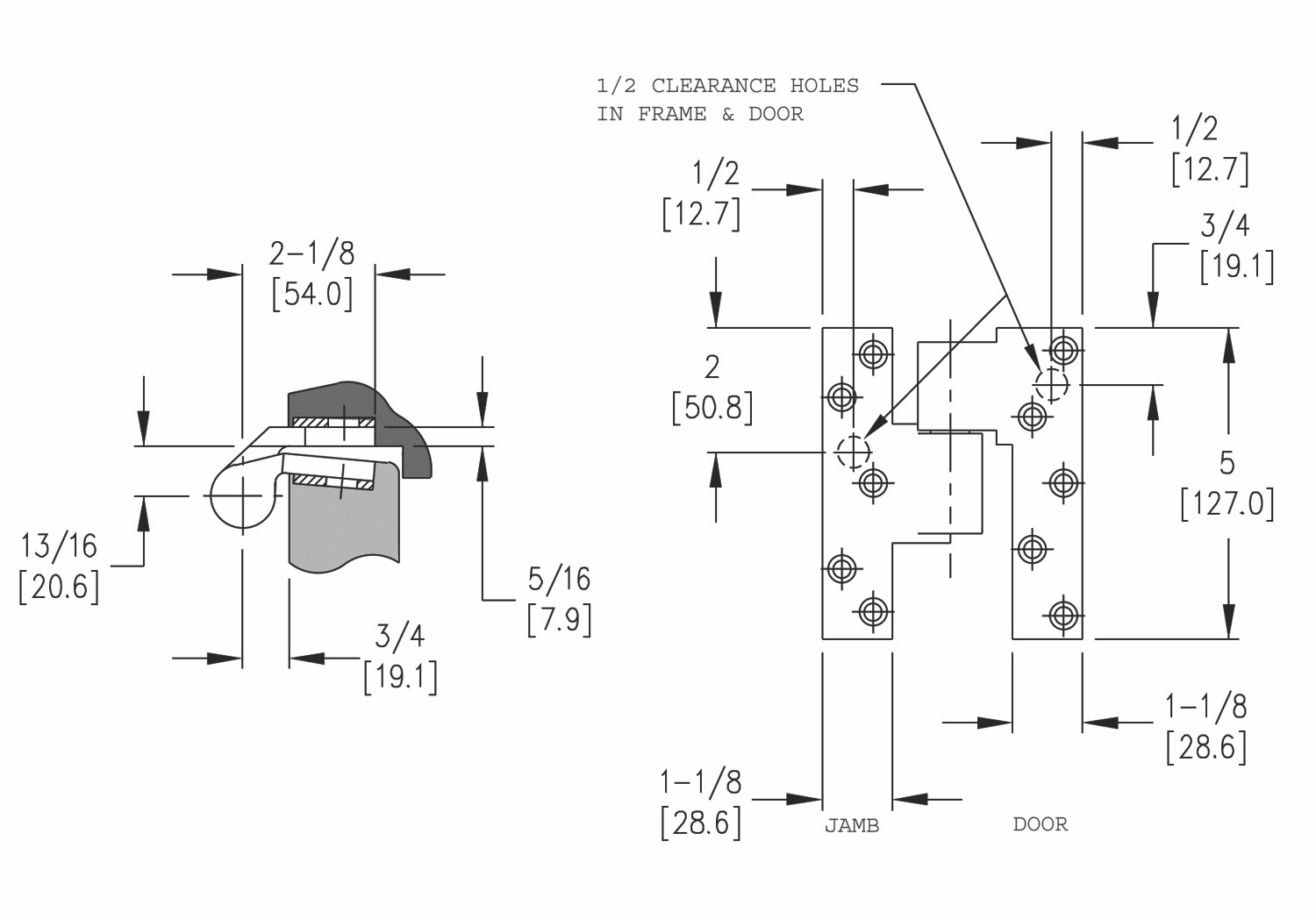

Intermediate Offset Pivot
Full Mortise (Handed)
- Maintains alignment of the door
- Transfers power or signal from frame to door
- Available for fire door assemblies (Prefix with "F")
- 3/4" offset (19.1mm) only
- Investment Cast Stainless Steel
- Available in standard archtectual finishes
- Use with 1230 series 3/4" offset pivot sets
Technical Note: Please note extra preparation of the frame and door required to provide raceway for wires
