Glass to Door Hinges
| Model No. | Description | |

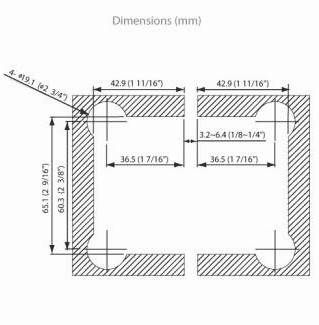

SHGD-180Glass to Glass Door  |
• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees |
 |

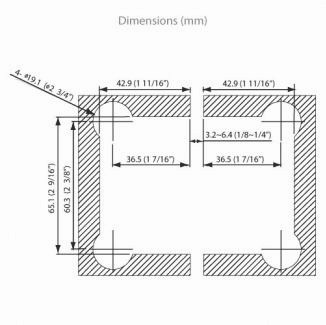

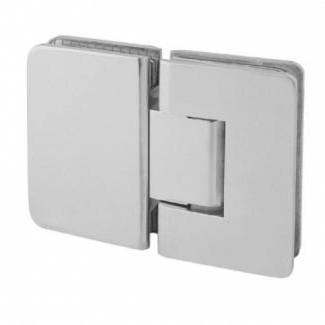

SHGD-180RGlass to Glass Door  |
• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees |
 |

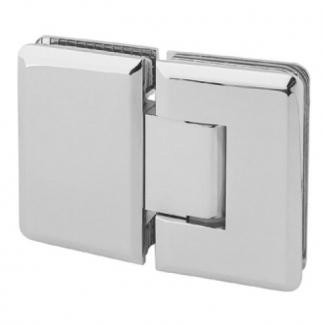

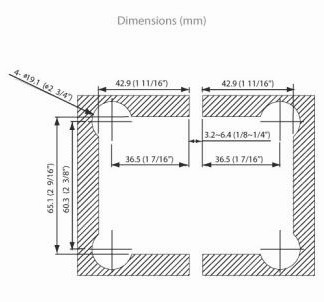

SHGD-180TGlass to Glass Door  |
• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees |
 |
