Seals and Wipes

Model No. Description

SS-BSWS

Seal and Wipe

• Dual Sean And Wipe
• Available for 1/4” (6mm) or 3/8” (10mm) Glass Thickness
• Available in 78” (1891mm) or 98” (2489mm) Length
• Can be used as a wipe or a seal
SS-BSWS Schematic

SS-BWDT

Bottom Seal
Drip Rail

• Clear Bottom Wipe and Drip Rail
• Available for 1/4” (6mm) or 3/8” (10mm) Glass Thickness
• Available in 84” (2134mm) or 98” (2489mm) Length
• Soft Wipes And Provides A Tight Seal 45 degrees
1323 Schematic

SS-IGS

Inline Panel Seal

• Seal For Inline Glass Panes
• Available for 1/4” (6mm) or 3/8” (10mm) Glass Thickness
• Available in 84” (2134mm) Length
• Soft Wipes And Provides A Tight Seal 45 degrees
SS-IGS Schematic

SH-FGDJ

Inline Seal
Door Jamb

• Seal For Inline Glass Pane and Glass Door
• Available for 3/8” (10mm) Glass Thickness
• Available in 78” (1891mm) 84” (2134mm) 98” (2489mm)
• Can Be Reversed for Inswing or Outswing Doors

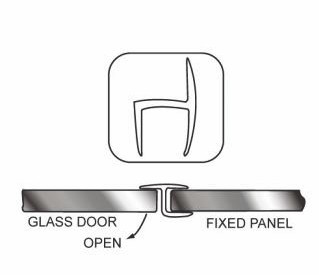

SH-FGDJ Schematic
