Wall to Door Hinges

Model No.	Description
SH-90F Wall Mounted Full Back Plate	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees

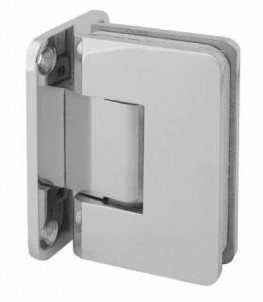

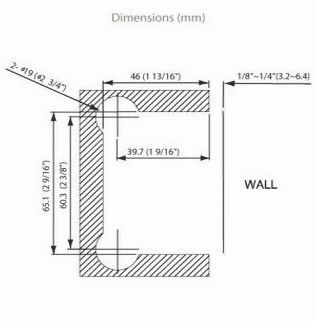

SH-90FR Wall Mounted Full Back Plate Radius Corners	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees

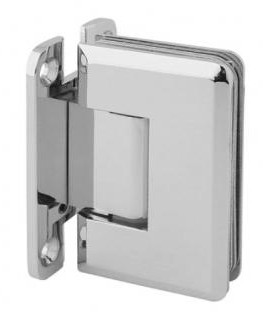

SH-90FT Wall Mounted Full Back Plate Tapered Edges	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees
SH-90S Wall Mounted Short Back Plate	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees
SH-90SR Wall Mounted Short Back Plate Radius Corners	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees
SH-90ST Wall Mounted Short Back Plate Tapered Edges	• Solid Brass Drop Forged Construction • Stainless Steel Reversible Pin with 0 and 5 degree positive stop • Glass sizes: 3/8” (10 mm) to 1/2” (12 mm) tempered glass • Stainless Steel internal springs • Finishes: US3, US4, US15, US26,US26D • 90 degree opening angles • Reversing Pin Changes Angle tp 85 degrees
