Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616

Model

Product Description/Features

E5150 WD

E5150F WD

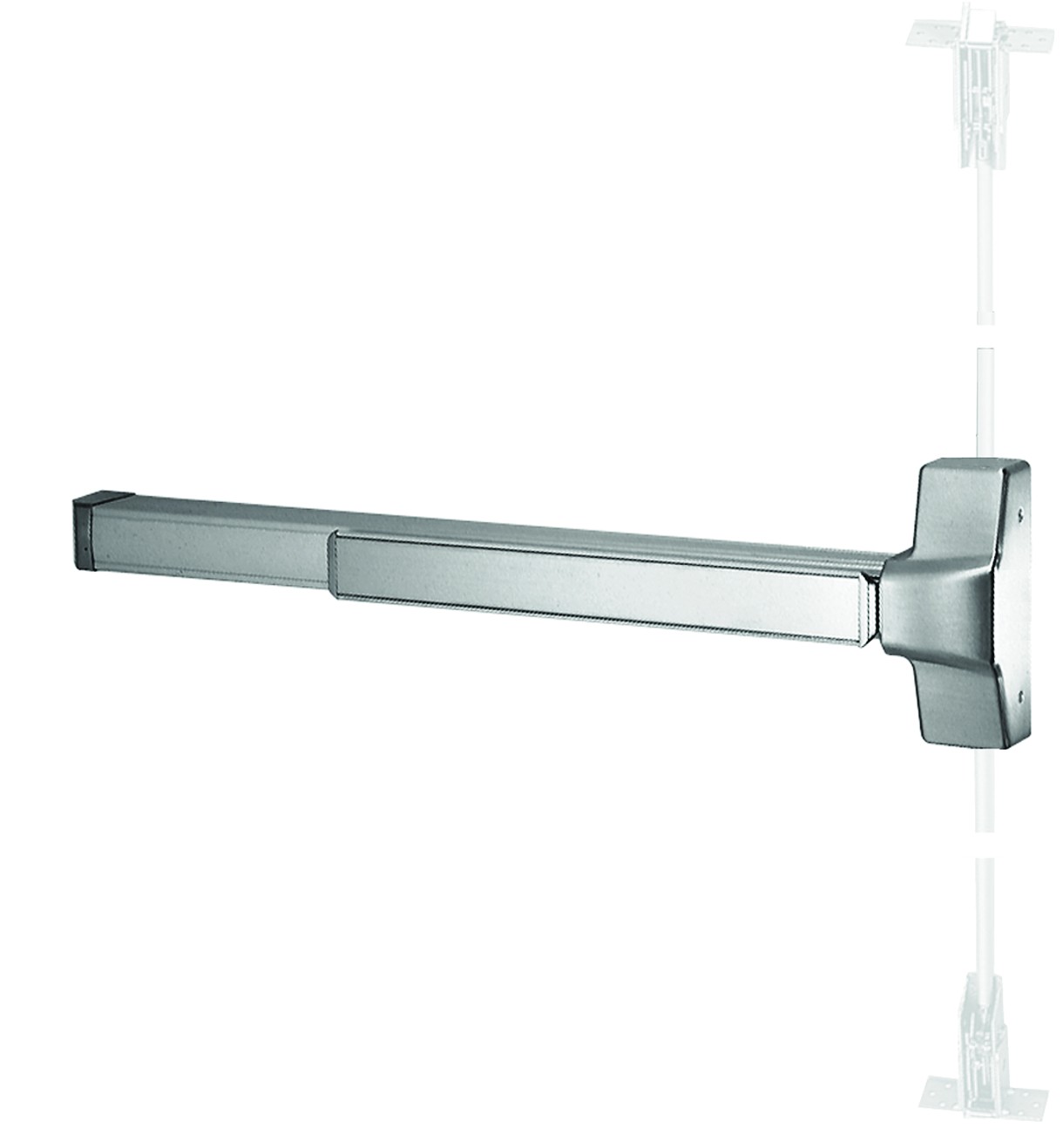

Concealed Vertical Rod Exit Device
Wide Style


Certifications and Listings

ANSI Certified: Fire and None Fire Devices are ANSI A156.3 - 2001 Grade 1

e5150wd

Specifications

Device Lengths available for (36)" 33" (838mm) or (48"), 45" (1137mm)
Door Widths 36" For 29" to 36" (736mm to 914mm) doors
48" For 33" to 48" (838mm to 1219mm) doors
Minimum Stile Width 4-1/4" (107mm)
Latch Bolt Top latch - 5/8" (16mm) throw, can be deadlocked automatically
Bottom latch - 5/8" (16mm) throw, held retracted during door swing
Strikes Top - E813 For 5150, E822 For 5100F. Btm.815 For 5150, 825 For 5150F
Dogging Kit Hex key dogging (5150 Device Only)
Fire Device No Mechanical Dogging
Dogging Options Cylinder Dogging (CD).
Mounting Fasteners Non Fire Device - 1/4-20 Machine Screws Standard
Fire Fated Device 1/4-20 x Sex Nuts and Bolts (SNB)
Mounting Height Device centerline from finished floor is 40” (1016mm) standard
Projection Touch Bar Neutral: 3-1/16" (78mm). Touch Bar Depressed: 2-19/32" (66mm)
Door Opening Height Standard door height is 7', 8' is available
Vertical Rods 1/2” (13mm) diameter tube with rod guides
Top rod has two pieces to connect for accommodating 7' or 8' door
Bottom rod is one piece, its length is 31-1/4” (794mm)
Finishes 630 Standard, 605, 606, 610. 613, 619, 625, 626 By Special Order

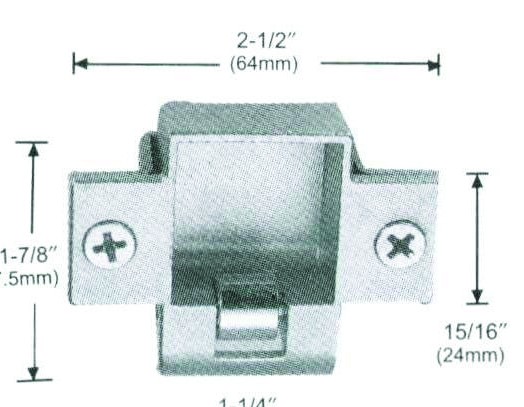

e813

E-812

e823

E-822

e815

E-815

e825

E-825
