Constant Latching and Automatic Flushbolts
Mounting Brackets

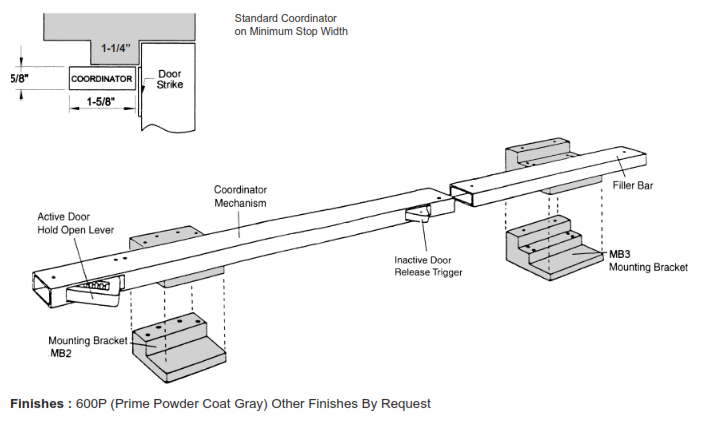

Occasionally The Top Jamb Does Not Have Enough Width to Support a Coordinator. In that instance a mounting Bracket Must be Added to The Installation. Please see the Information Below.

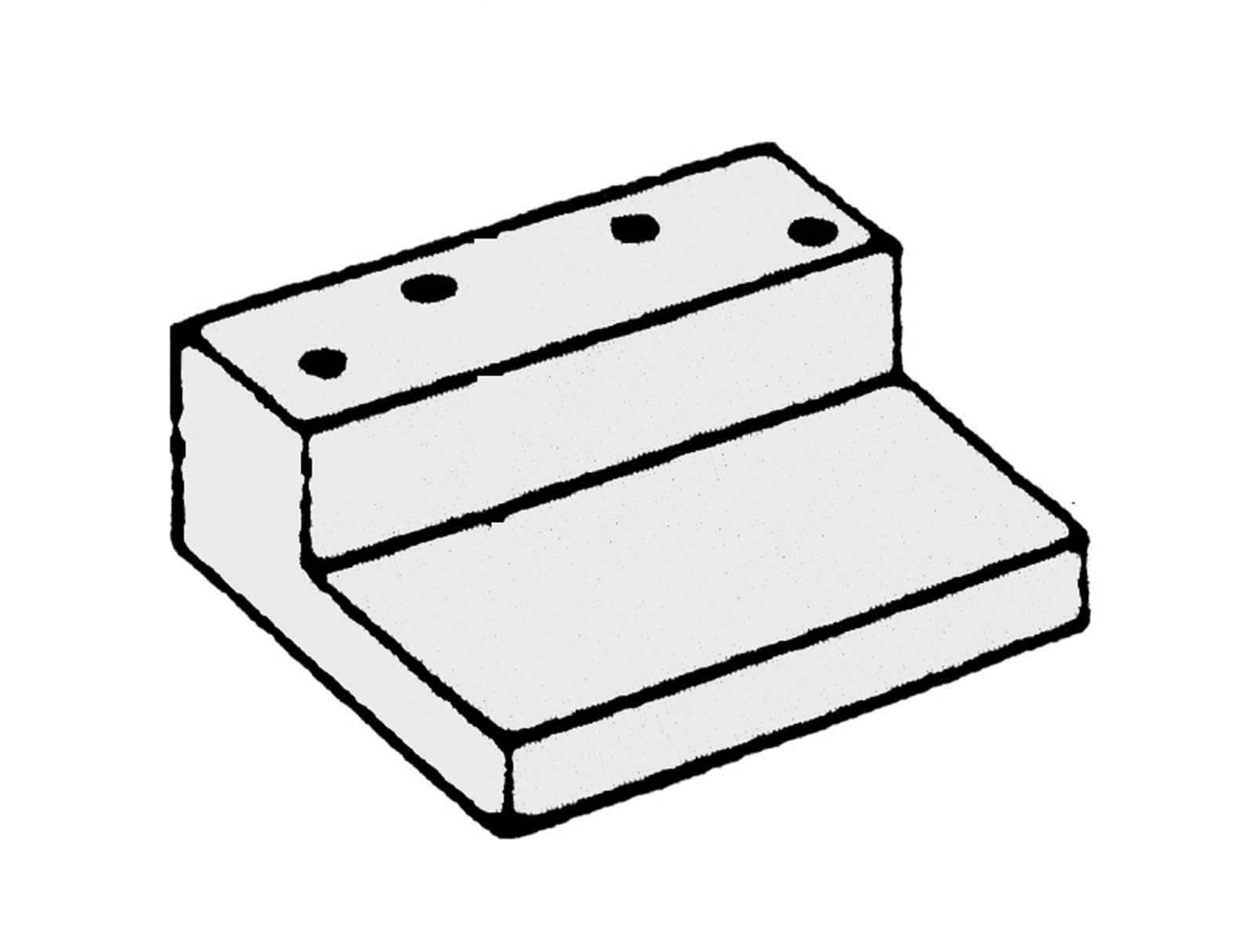

EMB2
Mounting Bracket For Stop
Width Over 2-1/4"
![emb3](images/exitdev/partsandaccesories/EMB2Dia.jpg)
![emb3](images/exitdev/partsandaccesories/EMB2.jpg)

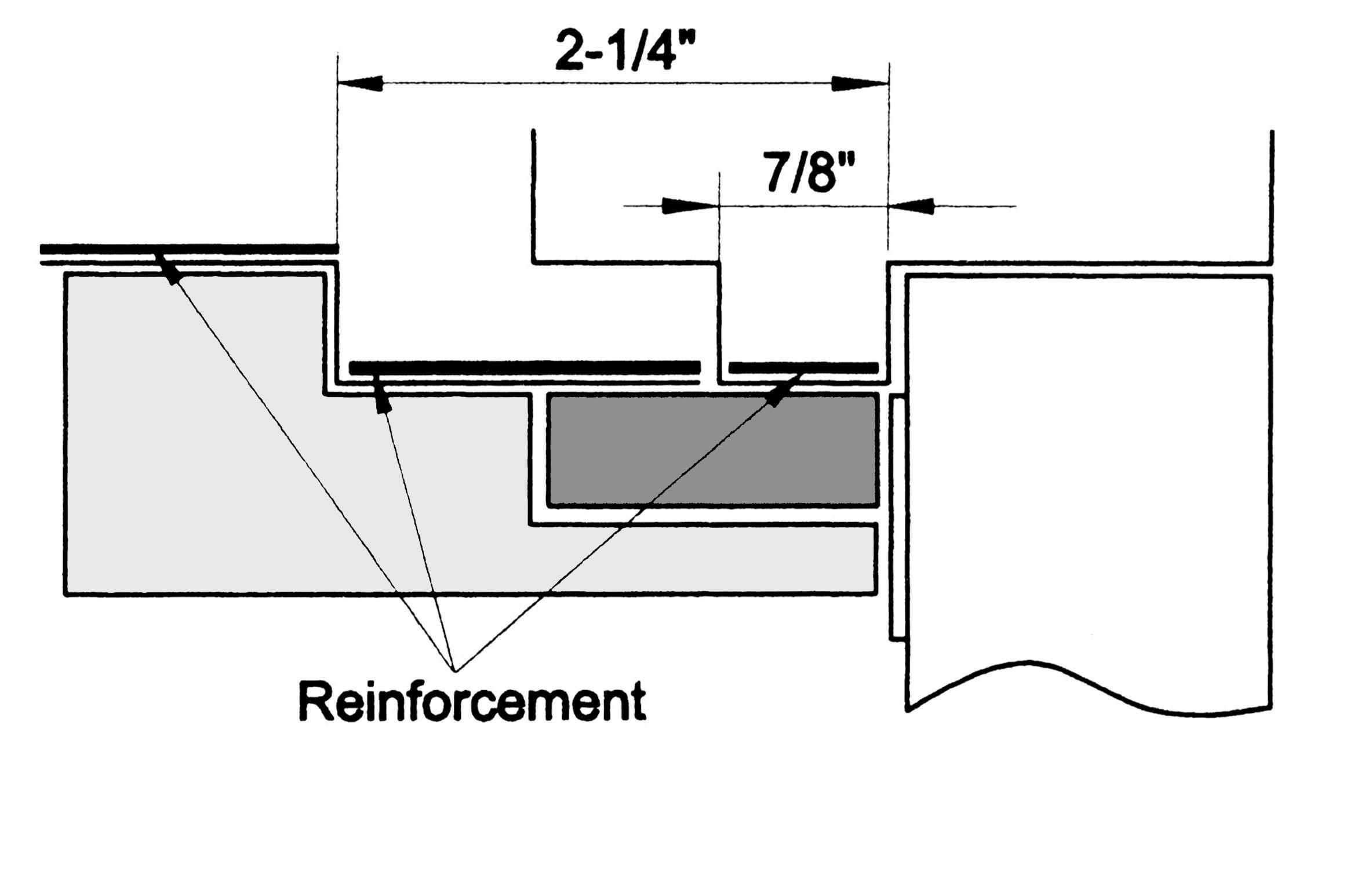

EMB3
Mounting Bracket For Stop
Width 7/8" to 2-1/4"
![emb3](images/exitdev/partsandaccesories/EMB3Dia.jpg)
![emb3](images/exitdev/partsandaccesories/EMB3.jpg)
![embchart](images/exitdev/partsandaccesories/embchart.png)
