500 Series Exit Device Trims
| MODEL | ANSI NO | PRODUCT DESCRIPTION & FEATURES | |

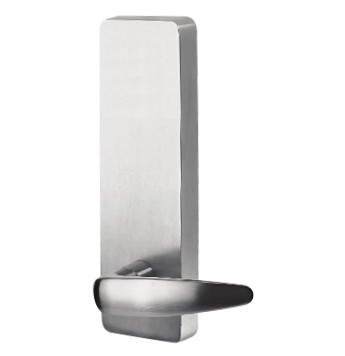

E510MMortise |
14 | • Passage Escutcheon Trim • Lever Always Active • Turning Lever Retracts Latchbolt • Escutcheon Plate Dimensions 9-7/16” x 2-15/26” x 13/16” (240mm x75mm x 21mm) • Trim Through Bolts Through The Device Head To Maintain Proper Alignment and For Greater Security |
 |
E570MMortise |
03 | • Classroom Escutcheon Trim • Key Locks or Unlocks Outside Lever • Outside Lever Always Active (Freewheeling) • Escutcheon Plate Dimensions 9-7/16” x 2-15/26” x 13/16” (240mm x75mm x 21mm) • Trim Requires 1 1/4” Mortise Cylinder • Trim Through Bolts Through The Device Head To Maintain Proper Alignment and For Greater Security |
 |

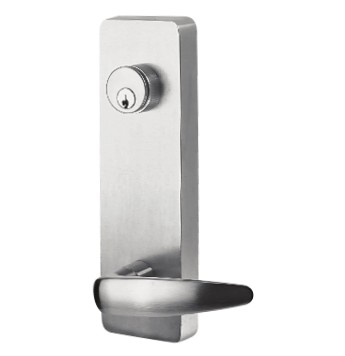

E580MMortise |
08 | • Storeroom Escutcheon Trim • Turning Key Withdraws Latchbolt on Device • Trim Always Locked • Outside Lever Rigid at all Times • Escutcheon Plate Dimensions 9-7/16” x 2-15/26” x 13/16” (240mm x75mm x 21mm) • Trim Requires Standard Rim Cylinder or IC Shell • Trim Through Bolts Through The Device Head To Maintain Proper Alignment and For Greater Security |
 |
