Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616

High Abuse Hinges

Model No. Description

5X650C

Heavy Hospital Tip Hinge (Non Handed)
Doors with 2 Hinges
Weight to 150lbs (68.2kg)
Doors with 3 Hinges
Weight to 300lbs (136.4kg)

• Full Mortise Investment Cast Satinless Steel Template Hinge
• Concealed Maintinance Free Bearing
• Hardened Free Turning Concealed Pin
• Intergral Anti Shear Security Stud and Hospital Tips
• Supplied with 3/8”-16 x 3/4” Steel Security Screws
• Supplied in Brushed Stainless Steel US 32D

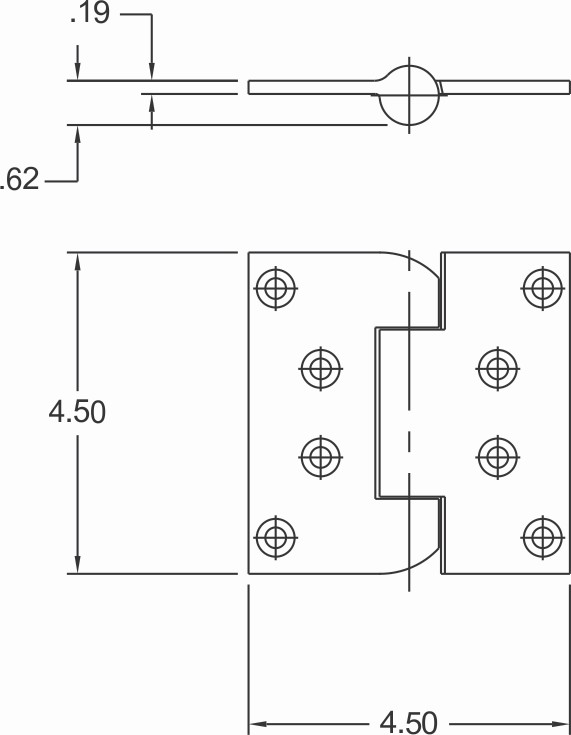

5X650C 5X650C Diagram
