High Abuse Hinges
| Model No. | Description | ||

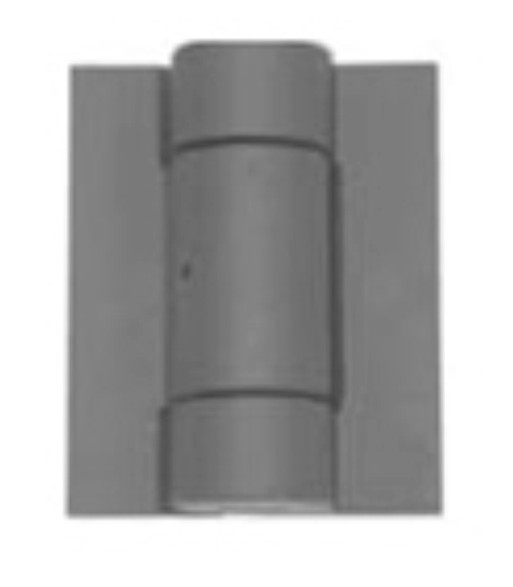

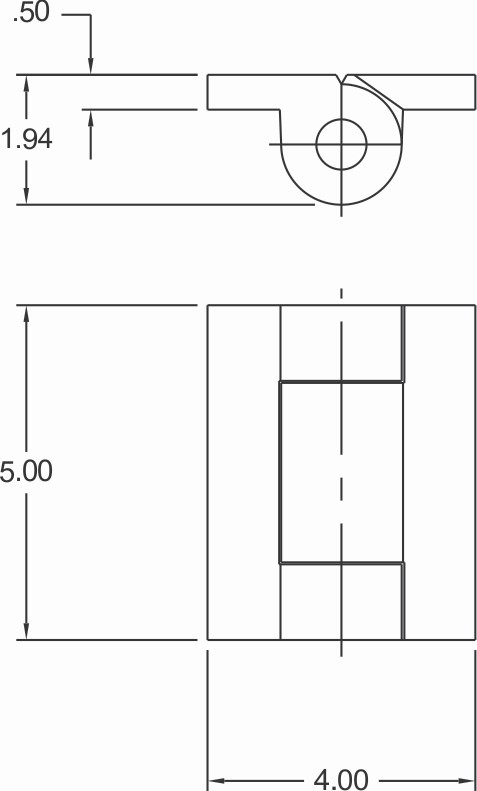

5X400BHeavy Duty Hinge (Non Handed) |
• Heavy Weight Surface Mounted Hinge for High Abuse Applications • 1/2” (12.7mm) Thick Heavy Duty Steel Leaves • 3/4” (19.1mm) Hardened Steel Pin Knurled and Pressed Into Blind Hole • Internal Thrust Bearings with Hardened Steel Ball Bearings • External Lubrication Point Provided in Knuckle • Blank Leaves Without Holes for Welded Applications • Supplied in Prime Coat Finish. Special Finishing Available on Request • This Product Meets Buy America • Welded Pin Construction or Non Standard Hole Patterns Available on Request |
 |
 |
5X525BHeavy Duty Hinge (Non Handed) |
• Heavy Weight Surface Mounted Hinge for High Abuse Applications • 1/2” (12.7)mm Thick Heavy Duty Steel Leaves • 3/4” (19.1)mm Hardened Steel Pin Knurled and Pressed Into Blind Hole • Internal Thrust Bearings with Hardened Steel Ball Bearings • External Lubrication Point Provided in Knuckle • Blank Leaves Without Holes for Welded Applications • Supplied in Prime Coat Finish. Special Finishing Available on Request • This Product Meets Buy America • Welded Pin Construction or Non Standard Hole Patterns Available on Request |
 |
 |

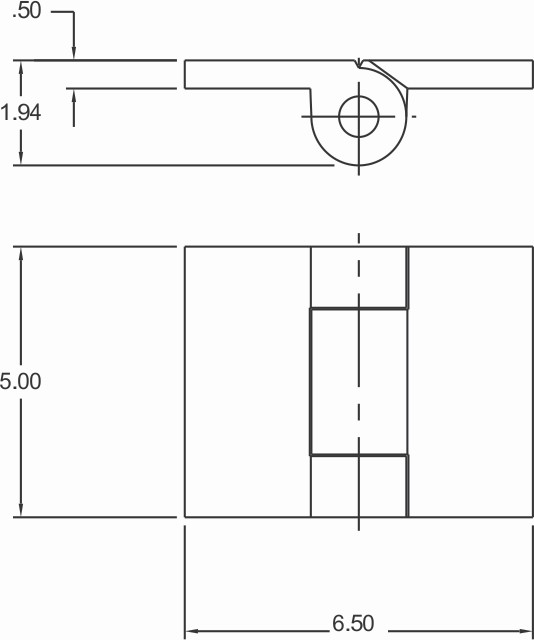

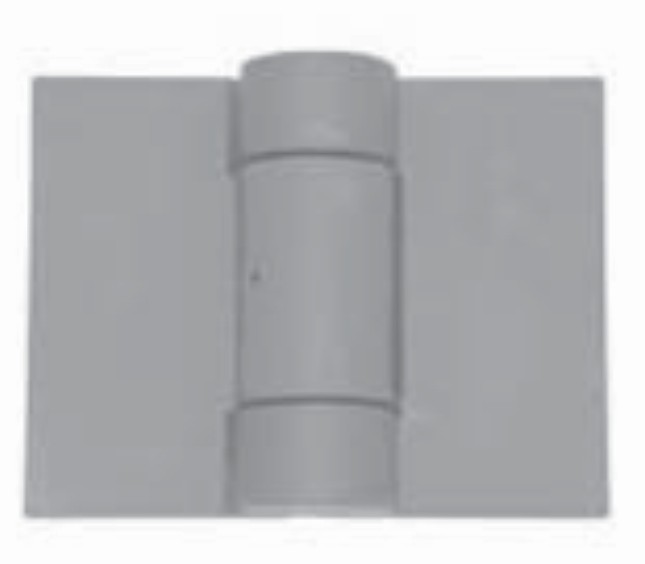

5X650BHeavy Duty Hinge (Non Handed) |
• Heavy Weight Surface Mounted Hinge for High Abuse Applications • 1/2” (12.7)mm Thick Heavy Duty Steel Leaves • 3/4” (19.1)mm Hardened Steel Pin Knurled and Pressed Into Blind Hole • Internal Thrust Bearings with Hardened Steel Ball Bearings • External Lubrication Point Provided in Knuckle • Blank Leaves Without Holes for Welded Applications • Supplied in Prime Coat Finish. Special Finishing Available on Request • This Product Meets Buy America • Welded Pin Construction or Non Standard Hole Patterns Available on Request |
 |
 |
