Heavy Weight Hinges -- Steel

Model No.	Description
TPH4540BB Plain Steel .180" (4.6mm) Full Mortise Hinge Commercial Grade Ball Bearing 4.5"(114.3) x 4"(101.6)	• Steel base material with non rising pin standard • For heavy doors with high frequency usage • Supplied with 4 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8111 • Available in US3, 4, 10, 10B, 15, 26, 26D
TPH4540BBNRP Plain Steel .180" (4.6mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 4.5"(114.3) x 4"(101.6)	• Steel base material with non rising pin standard • For heavy doors with high frequency usage • Supplied with 4 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8111 • Available in US3, 4, 10, 10B, 15, 26, 26D

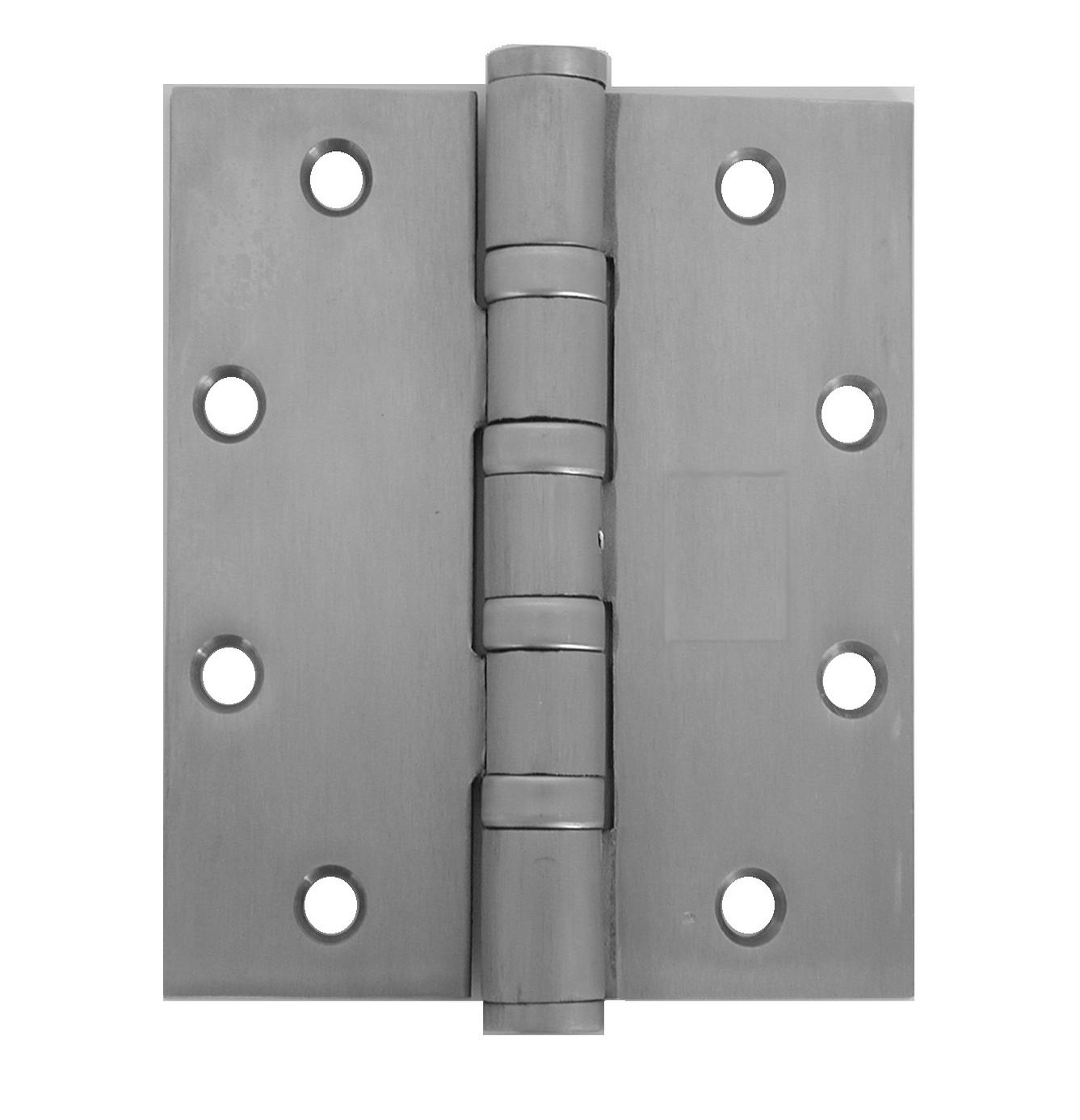

TPH4545BB Plain Steel .180" (4.6mm) Full Mortise Hinge Commercial Grade Ball Bearing 4.5"(114.3) x 4.5"(114.3)	• Stainless Steel base material with non rising pin standard • For medium weight doors with average frequency usage • Supplied with 2 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8112 • Available in USP, 3, 4, 10, 10A, 26, 26D
TPH4545BBNRP Plain Steel .180" (4.6mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 4.5"(114.3) x 4.5"(114.3)	• Steel base material with non rising pin standard • For heavy doors with high frequency usage • Supplied with 4 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8111 • Available in US3, 4, 10, 10B, 15, 26, 26D
TPH5045BB Plain Steel .190" (4.8mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 5"(127) x 4.5"(114.3)	• Steel base material with non rising pin standard • For heavy doors with high frequency usage • Supplied with 4 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8111 • Available in US3, 4, 10, 10B, 26, 26D • All other finishes priced on application
TPH5045BBNRP Plain Steel .190" (4.8mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 5"(127) x 4.5"(114.3)	• Steel base material with non rising pin standard • For heavy doors with high frequency usage • Supplied with 4 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8111 • Available in US3, 4, 10, 10B, 26, 26D • All other finishes priced on application • Non removable available use NRP suffix as shown
