Standard Weight Hinges -- Steel

Model No.	Description

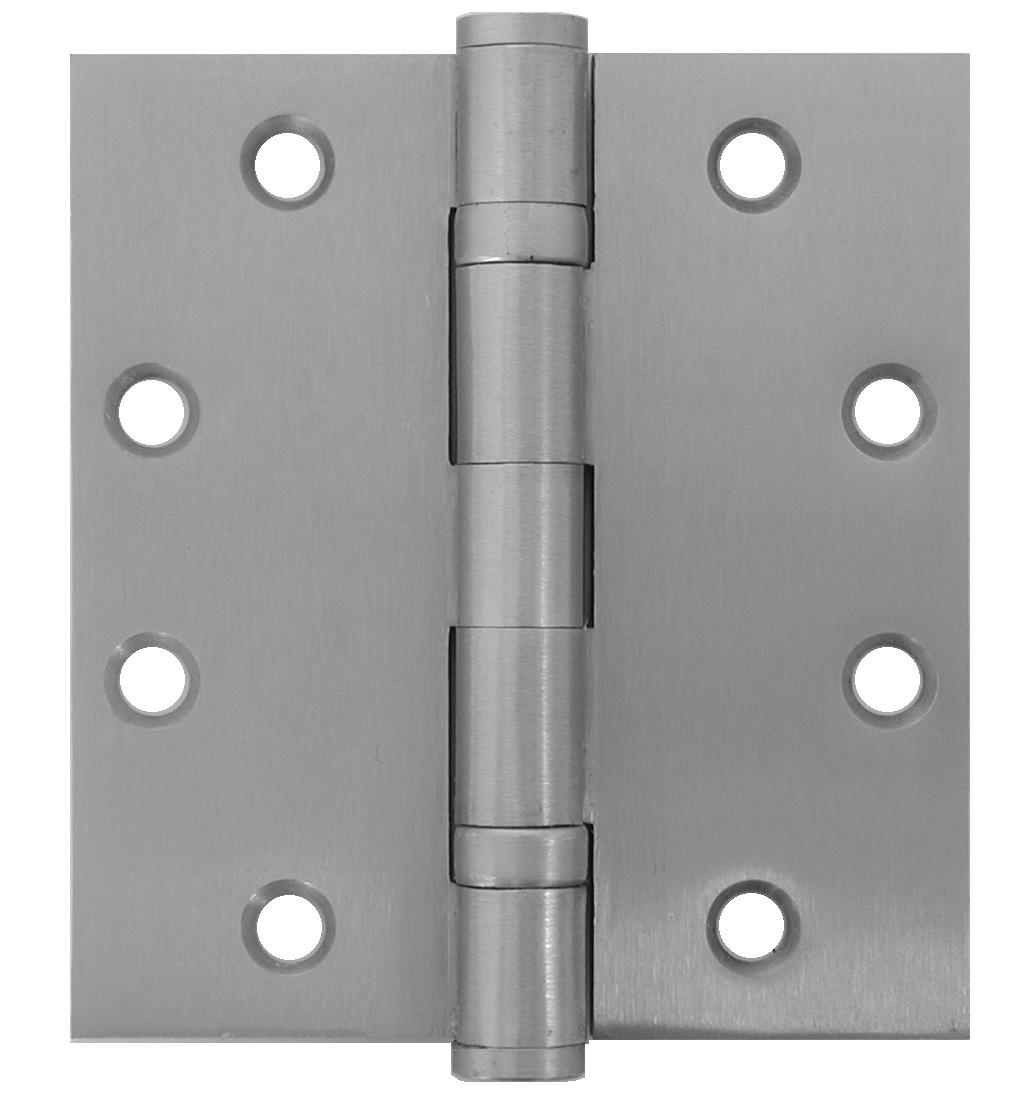

TP4540BB Plain Steel .134" (3.4mm) Full Mortise Hinge Commercial Grade Ball Bearing 4.5"(114.3) x 4"(101.6)	• Steel base material with non rising pin standard • For medium weight doors with average frequency usage • Supplied with 2 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8112 • Available in USP, 3, 4, 10, 10A, 26, 26D • All other finishes priced on application
TP4540BBNRP Plain Steel .134" (3.4mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 4.5"(114.3) x 4"(101.6)	• Steel base material with non rising pin standard • For medium weight doors with average frequency usage • Supplied with 2 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8112 • Available in USP, 3, 4, 10, 10A, 26, 26D • All other finishes priced on application • Non removable available use NRP suffix as shown
TP4545BB Plain Steel .134" (3.4mm) Full Mortise Hinge Commercial Grade Ball Bearing 4.5"(114.3) x 4.5"(114.3)	• Steel base material with non rising pin standard • For medium weight doors with average frequency usage • Supplied with 2 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8112 • Available in USP, 3, 4, 10, 10A, 26, 26D • All other finishes priced on application
TP4545BBNRP Plain Steel .134" (3.4mm) Full Mortise Hinge Commercial Grade Ball Bearing Non Removable Pin 4.5"(114.3) x 4.5"(114.3)	• Steel base material with non rising pin standard • For medium weight doors with average frequency usage • Supplied with 2 non detachable ball bearings • Template screw hole locations to speed installation • Meets ANSI A8112 • Available in USP, 3, 4, 10, 10A, 26, 26D • All other finishes priced on application • Non removable available use NRP suffix as shown
