Brookline Industries • 1624 South Clinton Street • Chicago, Illinois USA 60616

Door Fittings

Model No. Description

PF-SLTTPLH

Sidelite Mounted Transom Top Pivot With TTPI Insert Included
2 3/4" (70mm) or 2 9/16" (65mm) Backset (Field Adjustable)

 PF-SLTTPLH Available 605, 629, 630 Please Specify when Ordering

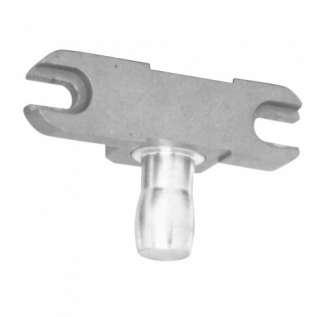

PF-TTPI

Transom Top Pivot Insert

PF-TTPI

PF-SLTP90RH

Sidelite Mount Transom Top Pivot With TTPI Insert Included
2 3/4" (70mm) or 2 9/16" (65mm) Backset (Field Adjustable)

 PF-SLPT90RH Available 605, 629, 630 Please Specify when Ordering

PF-TTPI

Transom Top Pivot Insert

PF-TTPI

PF-CMFS

Ceiling Mount Fin Support Bracket

PF-CMF

PF-PC4

Four Way Patch Connector

PF-PC4 Available 605, 629, 630 Please Specify when Ordering

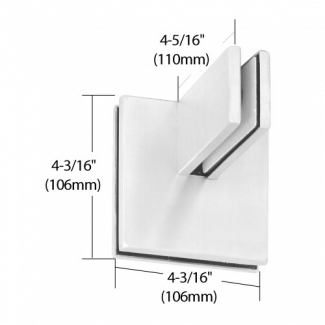

PF-PC4F

Four Way Patch Connector with Fin Bracket

PF-PC4F

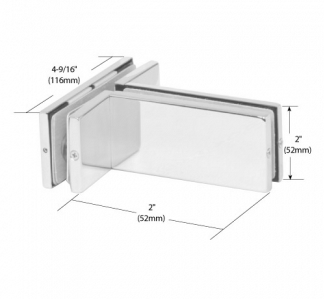

PF-TMPCF

Transom Mount Patch Connector with Fin Bracket

PF-CMF

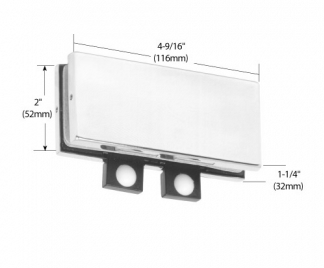

PF-TMPC2RDS

Ceiling Mount Patch Connector with Two Reversible Door Stops

PF-TMPC2RDS Available 605, 629, 630 Please Specify when Ordering

PF-SLTPC1RDS

Patch Corner with Stop

PF-SLTPC1RDS
